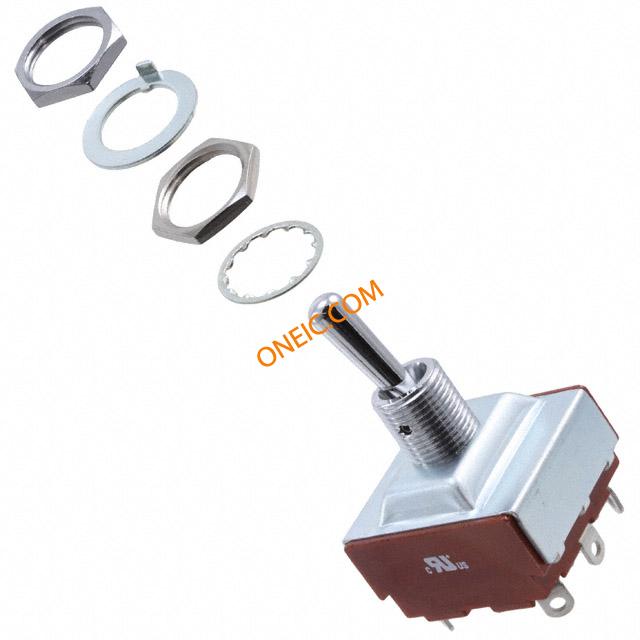

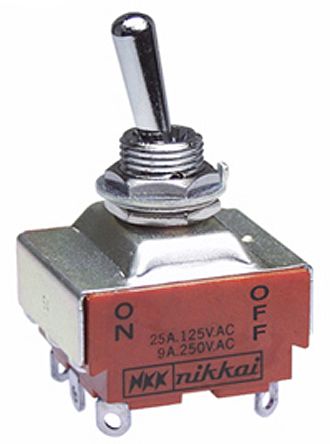

S31
| Manufacturer | |
| Description | Toggle Switches 3PST ON-OFF 25A SOLDER LUG Switch Toggle ON None OFF 3PST Bat Lever Solder Lug 25A 250VAC 30VDC Panel Mount with Threads SWITCH TOGGLE 3PST 25A 125V SWITCH, TOGGLE, 3PST, 25A, 125VAC Switch,Toggle;3PSTOnNoneOff;15A125VAC;LargeBat;SolderLug NKK Switches 三刀单掷 切换开关 , 开 - 无 - 关, 20 A @ 30 V 直流，25 A @ 125 V 交流 |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | S-31 | Product Category | Toggle Switches |
| Standard Package | 25 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85365080 | ||
Electrical
| Circuit | 3PST | Voltage Rating | 125V |
| Switch Function | On-Off | Voltage - Rated AC | 250V VAC |
| Current Rating (Max) | 25A (AC), 20A (DC) | Current - Max/Contact | :25A |
| Voltage - Input (Min) | 250 | Switch Function/Rating | ON None OFF |
| Connector - Voltage Input | :Solder | Voltage - Supply (Vcc/Vdd) | :30V |
| Voltage - DC Spark Over (Nom) | 30V VDC | Voltage - Rated AC (Phase to Ground/Neutral) | :125V |
Mechanical
| Depth | 30 mm | Height | 56.8 mm |
| Weight | 0 | Packaging | Bulk |
| Contact Form | 3PST | Actuator Type | Standard Round |
| Mounting Type | Panel Mount with Threads | Terminal Type | Solder Lug |
| Bushing Thread | M12 x 1 | Contact Finish | Silver |
| Mounting Style | Panel | Actuator Length | 17.50mm |
| Contact Material | Silver Alloy/Copper | Length - Overall | 33.8 mm |
| Actuator Material | Brass, Chrome Plated | Termination Style | Solder Lug |
| Actuator Style/Size | Bat Lever | Bushing, Grommet Type | M12 |
| Switch Actuation Level | 3PST | Contact Layout, Typical | :3PST |
| Panel Cutout Dimensions | Circular - 12.50mm Dia | ||
Product Info
| Type | Medium/High Capacity Standard Size | Series | S |
| Illumination | Non-Illuminated | Electrical Life | 25,000 Cycles |
Environmental
| Seal Rating | Sealed | Mechanical Life | 50000 |
| Operating Temperature | -10°C ~ 70°C | Operating Temperature - Junction | 70C |
