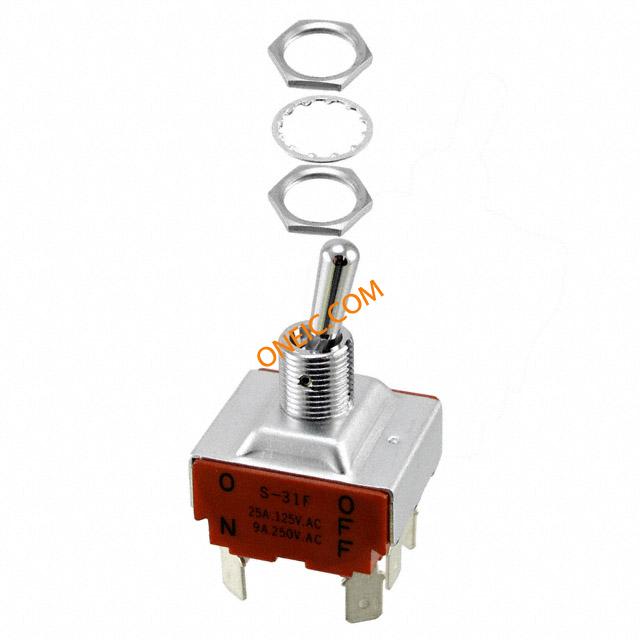

S31F
| Manufacturer | |
| Description | Switch Toggle ON None OFF 3PST Round Toggle Quick Conn 25A 250VAC 30VDC Panel Mount with Threads SWITCH TOGGLE 3PST 25A 125V SWITCH, TOGGLE, 3PST, 25A, 125VAC 3PSTONNONEOFF,Medium/HighCapacity,.689InLargeBatwith12mmBushing,Quic |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 25 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85365080 | ||
Electrical
| Circuit | 3PST | Voltage Rating | 125V |
| Switch Function | On-Off | Current Rating (Max) | 25A (AC), 20A (DC) |
| Current - Max/Contact | :25A | Voltage - Input (Min) | 250 |
| Switch Function/Rating | ON None OFF | Connector - Voltage Input | :Quick Connect |
| Voltage - Supply (Vcc/Vdd) | :30V | Voltage - Rated AC (Phase to Ground/Neutral) | :125V |
Mechanical
| Depth | 30 | Height | 62.8 |
| Weight | 0 | Packaging | Bulk |
| Actuator Type | Standard Round | Mounting Type | Panel Mount with Threads |
| Terminal Type | Quick Connect | Bushing Thread | M12 x 1 |
| Contact Finish | Silver | Actuator Length | 17.50mm |
| Contact Material | Silver Alloy/Copper | Length - Overall | 33.8 |
| Actuator Material | Brass, Chrome Plated | Termination Style | Quick Connect - 0.250" (6.3mm) |
| Actuator Style/Size | Round Toggle | Switch Actuation Level | 3PST |
| Contact Layout, Typical | :3PST | Panel Cutout Dimensions | Circular - 12.50mm Dia |
Product Info
| Type | Medium/High Capacity Standard Size | Illumination | Non-Illuminated |
| Electrical Life | 25,000 Cycles | ||
Environmental
| Mechanical Life | 50000 | Operating Temperature | -10°C ~ 70°C |
