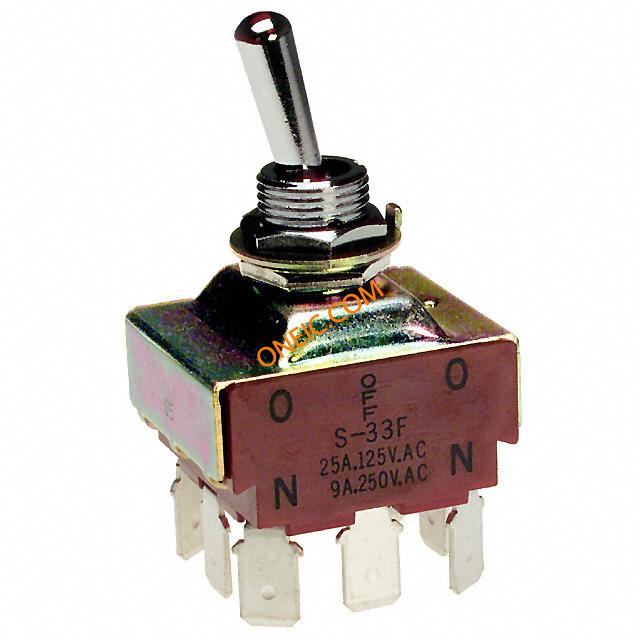

S33F
| Manufacturer | |
| Description | Switch Toggle ON OFF ON 3PDT Round Toggle Quick Conn 25A 250VAC 30VDC Panel Mount with Threads SWITCH TOGGLE 3PDT 25A 125V SWITCH, TOGGLE, 3PDT, 25A, 125VAC Switch,Toggle,Medium/HighCapacity,3PDT,On-Off-On,QuickConnect |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 25 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85365080 | ||
Electrical
| Circuit | 3PDT | Operation | OnOffOn |
| Voltage Rating | 125V | Number of Poles | 3 |
| Switch Function | On-Off-On | Voltage - Rated AC | 250V VAC |
| Dielectric Strength | 2000VAC | Current Rating (Max) | 25A (AC), 20A (DC) |
| Current - Max/Contact | :25A | Voltage - Input (Min) | 250 |
| Switch Function/Rating | ON OFF ON | Connector - Voltage Input | :Quick Connect |
| Voltage - Supply (Vcc/Vdd) | :30V | Voltage - DC Spark Over (Nom) | 30V VDC |
| Voltage - Rated AC (Phase to Ground/Neutral) | :125V | ||
Mechanical
| Depth | 30 mm | Height | 62.8 mm |
| Weight | 0 | Packaging | Bulk |
| Body Finish | Standard | Termination | QCTabs |
| Contact Form | 3PDT | Actuator Type | Standard Round |
| Mounting Type | Panel Mount with Threads | Terminal Type | Quick Connect |
| Bushing Thread | M12 x 1 | Contact Finish | Silver |
| Mounting Style | Panel | Actuator Length | 17.50mm |
| Contact Material | Silver Alloy/Copper | Length - Overall | 33.8 mm |
| Actuator Material | Brass, Chrome Plated | Termination Style | Quick Connect - 0.250" (6.3mm) |
| Actuator Style/Size | Round Toggle | Number of Positions | 3 |
| Mounting Hole Diameter | 0.492In. | Switch Actuation Level | 3PDT |
| Contact Layout, Typical | :3PDT | Panel Cutout Dimensions | Circular - 12.50mm Dia |
Product Info
| Type | Medium/High Capacity Standard Size | Features | Medium/HighCapacity |
| Illumination | Non-Illuminated | Electrical Life | 25,000 Cycles |
Environmental
| Mechanical Life | 50000 | Operating Temperature | -10°C ~ 70°C |
| Operating Temperature - Junction | 70C | ||
