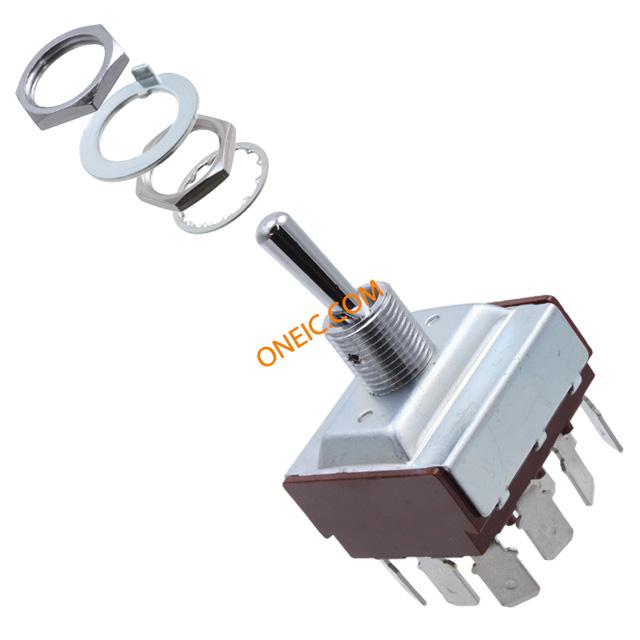

S42F
| Manufacturer | |
| Description | SWITCH TOGGLE 4PDT 25A QC 5PCS SWITCH TOGGLE 4PDT 25A 125V Switch Toggle ON None ON 4PDT Round Toggle Quick Conn 25A 250VAC 30VDC Panel Mount with Threads SWITCH, TOGGLE, 4PDT, 25A, 125VAC Switch,Toggle,4PDT,ON-NONE-ON,QuickConnect |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 25 | ||
Compliance
| Tariff No | 85365080 | ||
Electrical
| Circuit | 4PDT | Voltage Rating | 125V |
| Switch Function | On-On | Voltage - Rated AC | 250V VAC |
| Current Rating (Max) | 25A (AC), 20A (DC) | Current - Max/Contact | :25A |
| Switch Function/Rating | ON None ON | Connector - Voltage Input | :Quick Connect |
| Voltage - Supply (Vcc/Vdd) | :30V | Voltage - DC Spark Over (Nom) | 30V VDC |
| Voltage - Rated AC (Phase to Ground/Neutral) | :125V | ||
Mechanical
| Depth | 36.5 mm | Height | 62.6 mm |
| Weight | 0 | Packaging | Bulk |
| Actuator Type | Standard Round | Mounting Type | Panel Mount |
| Bushing Thread | M12 x 1 | Contact Finish | Silver |
| Actuator Length | 17.50mm | Contact Material | Silver Alloy/Copper |
| Length - Overall | 34.2 mm | Actuator Material | Brass, Chrome Plated |
| Termination Style | Quick Connect - 0.250" (6.3mm) | Actuator Style/Size | Toggle |
| Switch Actuation Level | 4PDT | Contact Layout, Typical | :4PDT |
| Panel Cutout Dimensions | Circular - 12.50mm Dia | ||
Product Info
| Illumination | Non-Illuminated | Electrical Life | 25,000 Cycles |
Environmental
| Mechanical Life | 50000 | Operating Temperature | -10°C ~ 70°C |
| Operating Temperature - Junction | 70C | ||
