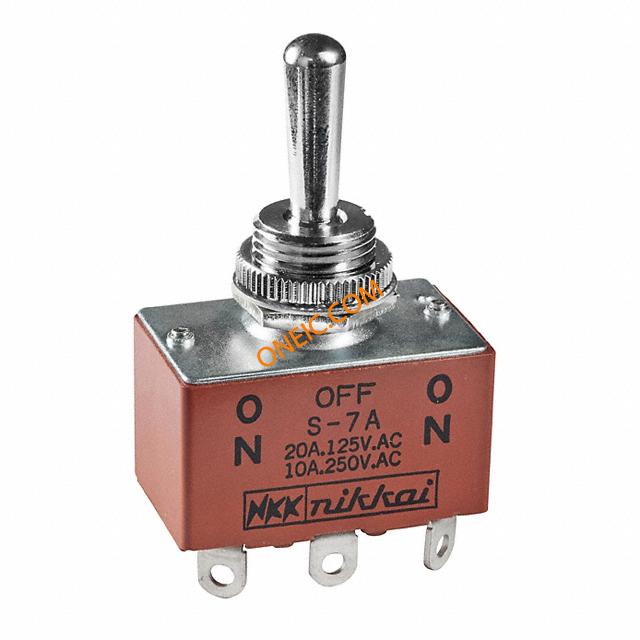

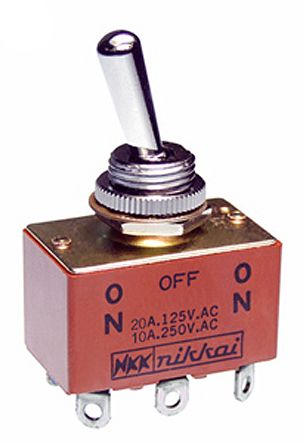

S7A
| Manufacturer | |
| Description | Toggle Switches DPDT ON-OFF-ON MED SOLDER LUG Switch Toggle ON OFF ON DPDT Round Toggle Solder Lug 20A 250VAC 30VDC Panel Mount with Threads SWITCH TOGGLE DPDT 20A 125V STD SIZE TOGGLE/LOW TO HIGH CAPACITY Switch,Toggle;DPDTOnNoneOn;15A125VAC;LargeBat;10mmbushing;QuickConnect NKK Switches IP67 双刀双掷 切换开关 , 开 - 关 - 开, 20 A |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | S-7A | Product Category | Toggle Switches |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant By Exemption | EU RoHS | Compliant |
| Tariff No | 85365080 | ||
Electrical
| Circuit | DPDT | Voltage Rating | 125 V, 250 V |
| Switch Function | ON - OFF - ON | Voltage - Rated AC | 250V VAC |
| Current Rating (Max) | 20 A | Voltage - Input (Min) | 250 |
| Switch Function/Rating | ON OFF ON | Voltage - DC Spark Over (Nom) | 30V VDC |
Mechanical
| Depth | 18.6 mm | Height | 53.2 mm |
| Weight | 0 | Packaging | Bulk |
| Contact Form | DPDT | Actuator Type | Bat |
| Mounting Type | Panel Mount with Threads | Terminal Type | Solder Lug |
| Bushing Thread | M12 x 1 | Contact Finish | Silver |
| Mounting Style | Panel | Actuator Length | 17.50mm |
| Contact Material | Silver Alloy/Copper | Length - Overall | 31.2 mm |
| Actuator Material | Brass, Chrome Plated | Termination Style | Solder Lug |
| Actuator Style/Size | Round Toggle | Bushing, Grommet Type | M12 |
| Switch Actuation Level | DPDT | Panel Cutout Dimensions | Circular - 12.50mm Dia |
Product Info
| Type | Medium Capacity Standard Size | Series | S |
| DELETED | Compliant | Illumination | Not Illuminated |
| Electrical Life | 25,000 Cycles | ||
Environmental
| Seal Rating | Epoxy | Mechanical Life | 50000 |
| Operating Temperature | -10°C ~ 70°C | Operating Temperature - Junction | 70C |
