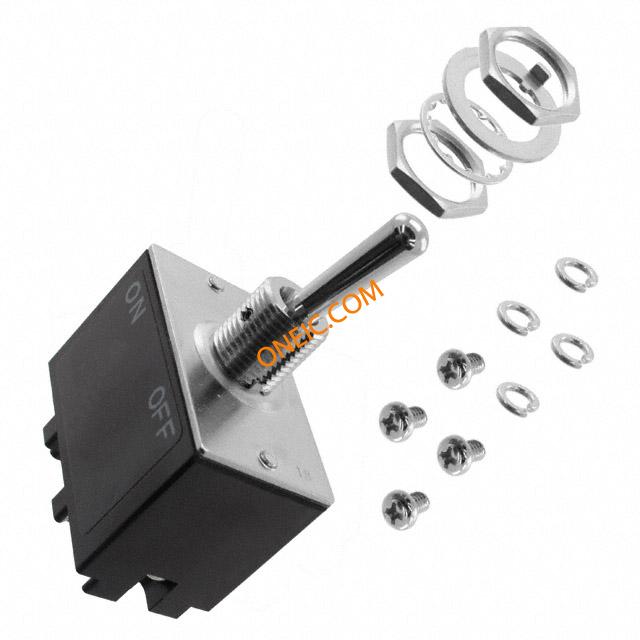

S821
| Manufacturer | |
| Description | Switch Toggle ON None OFF DPST Round Toggle Screw Lug 30A 250VAC 125VDC Panel Mount with Threads SWITCH TOGGLE DPST 30A 125V SWITCH, TOGGLE, DPST, 30A, 250VAC Switch,Toggle,HighCapacity,2Pole,ScrewTerminals,DPST,On-None-Off |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 20 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85365080 | ||
Electrical
| Circuit | DPST | Operation | OnNoneOff |
| Voltage Rating | 125V | Number of Poles | 2 |
| Switch Function | On-Off | Dielectric Strength | 2000VAC |
| Current Rating (Max) | 30A (AC/DC) | Current - Max/Contact | :30A |
| Voltage - Input (Min) | 250 | Switch Function/Rating | ON None OFF |
| Connector - Voltage Input | :Screw | Voltage - Supply (Vcc/Vdd) | :30V |
| Voltage - Rated AC (Phase to Ground/Neutral) | :250V | ||
Mechanical
| Depth | 24 | Height | 68 |
| Weight | 0 | Packaging | Bulk |
| Body Finish | Standard | Termination | Screws |
| Contact Form | DPST | Actuator Type | Standard Round |
| Mounting Type | Panel Mount with Threads | Terminal Type | Screw Lug |
| Bushing Thread | M12 x 1 | Contact Finish | Silver |
| Mounting Style | Panel | Actuator Length | 22.00mm |
| Contact Material | Silver Alloy/Copper | Length - Overall | 42 |
| Actuator Material | Brass, Chrome Plated | Termination Style | Screw Terminal |
| Actuator Style/Size | Round Toggle | Number of Positions | 2 |
| Mounting Hole Diameter | 0.492,0.118In. | Switch Actuation Level | DPST |
| Contact Layout, Typical | :DPST | Panel Cutout Dimensions | Circular - 12.50mm Dia |
Product Info
| Type | High Capacity Standard Size | Features | HighCapacitance |
| Illumination | Non-Illuminated | Electrical Life | 25,000 Cycles |
Environmental
| Mechanical Life | 50000 | Operating Temperature | -10°C ~ 70°C |
Documents & Media
PDF Document
