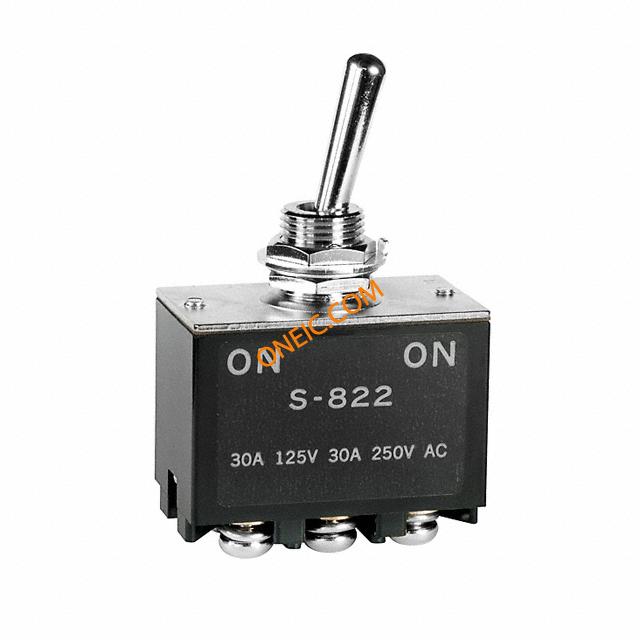

S822/U
| Manufacturer | |
| Description | SWITCH TOGGLE DPDT SCREW UL SWITCH TOGGLE DPDT 30A 125V SWITCH, TOGGLE, DPDT, 30A, 250VAC DPDTONNONEON,HighCapacity,.866InBatwith12mmBushing,ScrewLug |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85365080 |
Electrical
| Circuit | DPDT | Voltage Rating | 125V |
| Switch Function | On-On | Current Rating (Max) | 30A (AC/DC) |
| Current - Max/Contact | :30A | Switch Function/Rating | :On-None-On |
| Connector - Voltage Input | :Screw | Voltage - Supply (Vcc/Vdd) | :30V |
| Voltage - Rated AC (Phase to Ground/Neutral) | :250V | ||
Mechanical
| Weight | 0 | Packaging | Bulk |
| Actuator Type | Standard Round | Mounting Type | Panel Mount |
| Bushing Thread | M12 x 1 | Actuator Length | 22.00mm |
| Actuator Material | Brass, Chrome Plated | Termination Style | Screw Terminal |
| Actuator Style/Size | :Toggle | Contact Layout, Typical | :DPDT |
| Panel Cutout Dimensions | Circular - 12.50mm Dia | ||
Product Info
| Illumination | Non-Illuminated | Electrical Life | 25,000 Cycles |
Environmental
| Operating Temperature | -10°C ~ 70°C | ||
Documents & Media
PDF Document
