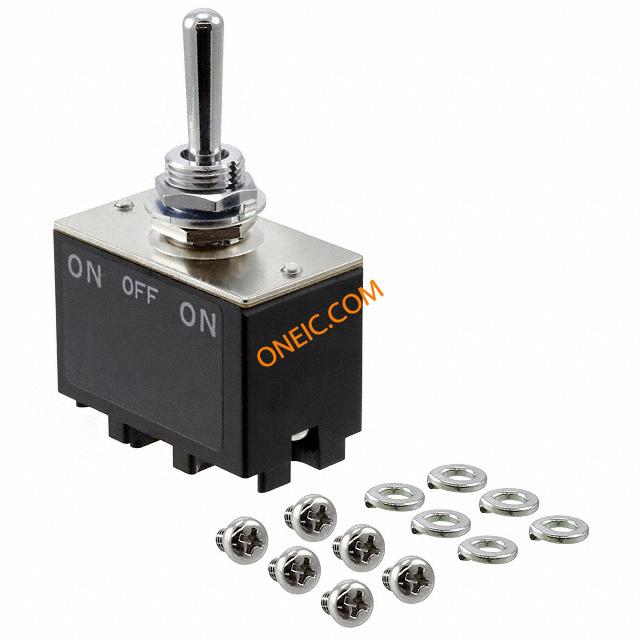

S823/CUL
| Manufacturer | |
| Description | STD SIZE TOGGLE/LOW TO HIGH CAPA Toggle Switches Series S High Capacity SWITCH TOGGLE DPDT 30A 125V DPDTONOFFON,HighCapacity,.866InBatwith12mmBushing,ScrewLug |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant By Exemption | ||
Electrical
| Circuit | DPDT | Voltage Rating | 125V |
| Switch Function | On-Off-On | Current Rating (Max) | 30A (AC/DC) |
Mechanical
| Packaging | Bulk | Actuator Type | Standard Round |
| Mounting Type | Panel Mount | Bushing Thread | M12 x 1 |
| Actuator Length | 22.00mm | Actuator Material | Brass, Chrome Plated |
| Termination Style | Screw Terminal | Panel Cutout Dimensions | Circular - 12.50mm Dia |
Product Info
| Series | * | Illumination | Non-Illuminated |
| Electrical Life | 25,000 Cycles | ||
Environmental
| Operating Temperature | -10°C ~ 70°C | ||
