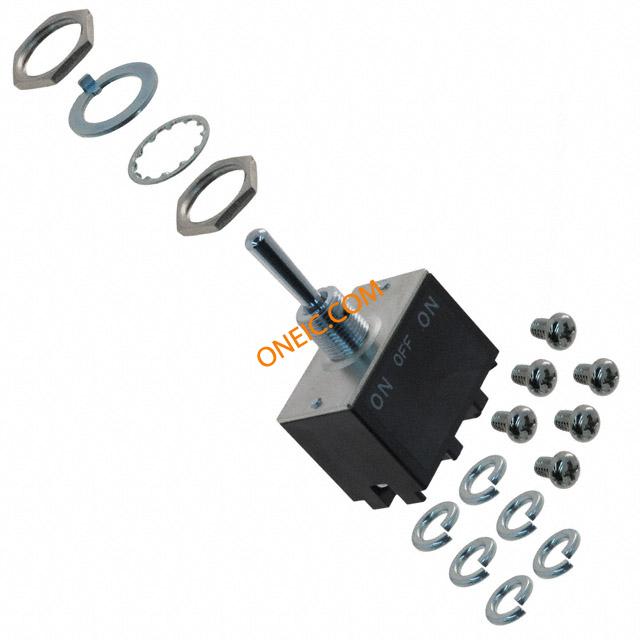

S823
| Manufacturer | |
| Description | Switch Toggle ON OFF ON DPDT Round Toggle Screw Lug 30A 250VAC 125VDC Panel Mount with Threads SWITCH TOGGLE DPDT 30A 125V TOGGLE SWITCH, DPDT, ON-OFF-ON SWITCH,TOGGLE,HIGHCAPACITY,STANDARDSIZE,DPDT,ON-OFF-ON,SCREWLUG |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 20 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85365007 |
| Approval Agency | :CSA | ||
Electrical
| Circuit | DPDT | Operation | OnOffOn |
| Voltage - Core | :250VAC | Voltage Rating | 125V |
| Number of Poles | :2 | Switch Function | On-Off-On |
| Contact Resistance | :10mohm | Current Rating - AC | :15A |
| Dielectric Strength | :2000VAC | Current Rating (Max) | 30A (AC/DC) |
| Current - Max/Contact | :30A | Insulation Resistance | :1000Mohm |
| Voltage - Input (Min) | 250 | Switch Function/Rating | ON OFF ON |
| Contact Rating @ Voltage | :30A | Connector - Voltage Input | :Screw |
| Voltage - Supply (Vcc/Vdd) | :30V | Voltage - Rated AC (Phase to Ground/Neutral) | :125V |
Mechanical
| Depth | :24mm | Width | :42mm |
| Height | :34mm | Weight | 0.0835 |
| Material | :Melamine phenol | Packaging | Bulk |
| Body Finish | Standard | Termination | Screws |
| Contact Form | DPDT | Actuator Type | Standard Round |
| Mounting Type | Panel Mount with Threads | Terminal Type | Screw Lug |
| Thread Length | :12.0mm | Bushing Thread | M12 x 1 |
| Contact Finish | Silver | Mounting Style | Panel |
| Actuator Length | 22.00mm | Contact Material | Silver Alloy/Copper |
| Length - Overall | :22mm | Actuator Material | Brass, Chrome Plated |
| Termination Style | Screw Terminal | Actuator Style/Size | Round Toggle |
| Number of Positions | :10000 | Mounting Hole Diameter | 0.492,0.118In. |
| Switch Actuation Level | DPDT | Contact Layout, Typical | :DPDT |
| Panel Cutout Dimensions | Circular - 12.50mm Dia | 1st Connector Mounting Type | :Panel |
Product Info
| Type | High Capacity Standard Size | Features | HighCapacitance |
| Illumination | Non-Illuminated | Electrical Life | 25,000 Cycles |
Environmental
| Mechanical Life | 50000 | Switching Cycles | :50000 |
| Operating Temperature | -10°C ~ 70°C | ||
