SK13DAW01
| Manufacturer | |
| Description | Switch Key Lock ON OFF ON SPDT 45° Flat Key 3A 125VAC Solder Lug 30000Cycles Panel Mount SWITCH KEYLOCK SPDT 12MM 125V Switch Key Lock ON OFF ON SPDT 45� Flat Key 3A 125VAC Solder Lug 30000Cycles Panel Mount KEYSWITCH, 12MM, 3 POS Switch,Keylock,Miniature,LowSecurity,On-Off-On;1,2,3KeyRemovablePosition |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Standards | ULCSA |
| Tariff No | 85365007 | Approval Agency | :CSA, UL |
Electrical
| Circuit | SPDT | Operation | On-Off-On |
| Voltage - Core | :250V | Voltage Rating | 250VAC |
| Number of Poles | :1 | Contact Resistance | :10mohm |
| Voltage - Rated AC | 125V VAC | Dielectric Strength | :1000V |
| Current Rating (Max) | 3 A | Current - Max/Contact | :3A |
| Insulation Resistance | :1000Mohm | Voltage - Input (Min) | 125 |
| Switch Function/Rating | ON OFF ON | Contact Rating (Current) | :3A |
| Contact Rating @ Voltage | 3A @ 125VAC | Connector - Voltage Input | :Solder |
| Voltage - Rated AC (Phase to Ground/Neutral) | :250V | ||
Mechanical
| Depth | 14 mm | Width | :14mm |
| Height | 30 mm | Length | :43.2mm |
| Weight | 0.014 | Step Angle | :90° |
| Termination | :Solder / Push-On | Contact Form | SPDT |
| Actuator Type | Flat Key | Mounting Type | Panel Mount |
| Terminal Type | Solder Lug | Angle of Throw | 45° |
| Contact Finish | Silver | Mounting Style | Panel |
| Rotation Angle | :45° | Shaft Diameter | :12mm |
| Contact Material | Silver | Length - Overall | 14 mm |
| Material - Frame | Zinc Alloy | Termination Style | Solder Lug |
| Actuator Style/Size | :Flat | Number of Positions | 3 |
| Diameter - Barrel ID | :12mm | Mounting Hole Diameter | 12mm |
| Switch Actuation Level | SPDT | Contact Layout, Typical | :SPDT |
| Material - Housing & Prism | Phenolic Resin/Zinc Alloy | ||
Product Info
| Type | Low Security | Series | :SK |
| Key Type | Flat Key | Key Removable Positions | 1, 2 and 3 |
Environmental
| Mechanical Life | 30000 | Switching Cycles | :30000 |
| Operating Temperature | -25C to 70C | Operating Temperature - Junction | 70C |
Documents & Media
PDF Document
Similar Parts
300-002
Mega Electronics
300-002, Single Sided 356 x 260mm UV Exposure Unit With 4 x 15 W Tubes, 515 x 400 x 120mm MEGA Electronics 单侧 356 x 260mm 紫外线曝光机, 带4 x 15 W灯管, 515 x 400 x 120mm
$3104.3400
Details
300-001
Mega Electronics
300-001, Single Sided 229 x 159mm UV Exposure Unit With 2 x 8 W Tubes, 420 x 175 x 90mm MEGA Electronics 单侧 229 x 159mm 紫外线曝光机, 带2 x 8 W灯管, 420 x 175 x 90mm
$2958.3100
Details
12101
TE CONNECTIVITY
LABEL, EPROM/PCB, PK500
$135.9000
Details

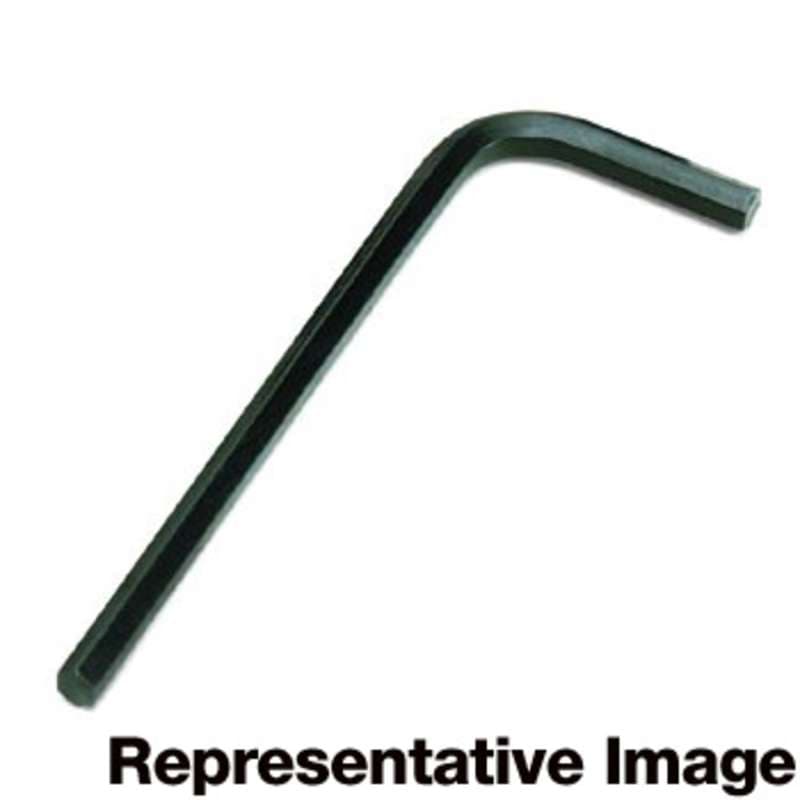

12100
