SS12SDH2
| Manufacturer | |
| Description | Slide Switches SPDT ON-NONE-ON SIDE Switch Slide ON None ON SPDT Side Slide 0.1A 30VDC 10000Cycles PC Pins Thru-Hole SW SLIDE MINI SPDT SIDE ACT 30V SWITCH, SPDT, R/A, 0.1A, 30VDC, THT Switch,Slide;SPDTOnNoneOn;0.1A30VDC;SideAct.;PCBmnt,0.100pitch |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 360-2134 | Part # Aliases | SS-12SDH2 |
| Product Category | Slide Switches | Standard Package | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85365007 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Circuit | SPDT | Voltage Rating | 28 V |
| Switch Function | On-On | Contact Resistance | :20mohm |
| Current Rating (Max) | 0.1 A | Current - Max/Contact | :100mA |
| Switch Function/Rating | ON None ON | Contact Rating (Current) | 0.1 A at 30 V |
| Contact Rating @ Voltage | 0.1A @ 30VDC | Voltage - Supply (Vcc/Vdd) | :30V |
| Voltage - DC Spark Over (Nom) | 30V VDC | ||
Mechanical

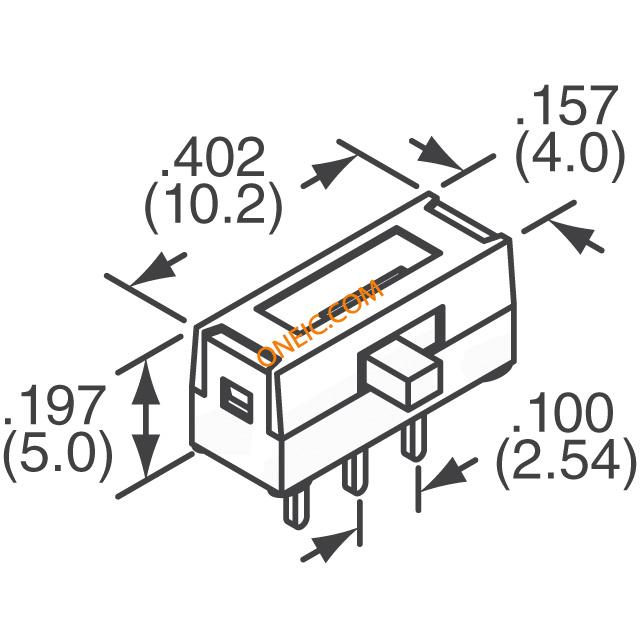

| Depth | 6.5 mm | Height | 5 mm |
| Weight | 0.0002 | Orientation | Right Angle |
| Contact Form | SPDT | Travel Range | 2 mm |
| Actuator Type | Standard | Mounting Type | Through Hole |
| Terminal Type | PC Pins | Contact Finish | Silver |
| Mounting Style | Through Hole | Contact Material | Phosphor Bronze |
| Length - Overall | 10.2 mm | Actuator Material | Polyamide |
| Termination Style | PC Pin | Actuator Style/Size | Side Slide |
| Switch Actuation Level | SPDT | Contact Layout, Typical | :SPDT |
| Material - Housing & Prism | Phenolic Resin/Thermoplastic | 1st Connector Mounting Type | :Through Hole |
Product Info
| Type | Ultra-Miniature | DELETED | Compliant |
| Illumination | Non-Illuminated | Electrical Life | 10000 |
Environmental
| Mechanical Life | 10000 | Operating Temperature | - 15 C to + 60 C |
| Operating Temperature - Junction | 60C | ||
