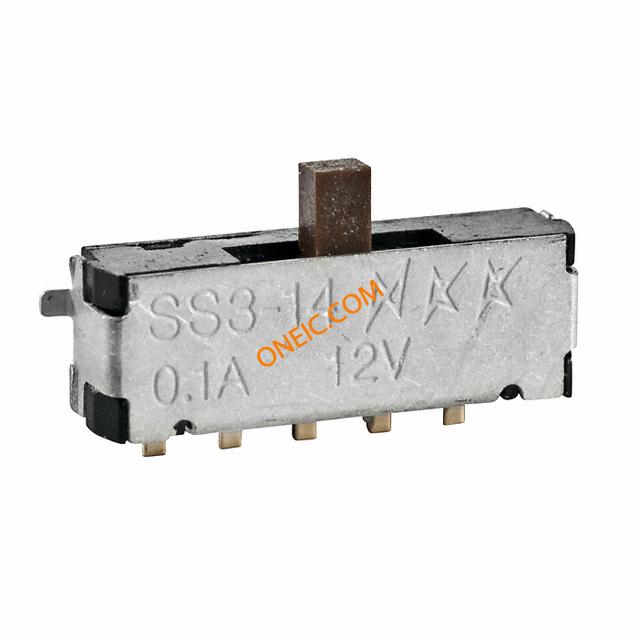

SS314MAH4
| Manufacturer | |
| Description | Slide Switches SMD SP3T ON-ON-ON Switch Slide ON OFF ON/ON ON ON SPDT/SP3T Side Slide 0.1A 28VAC 28VDC 0.4VA 10000Cycles Gull Wing SMD Tray SW SLIDE SPDT SIDE ACT GOLD 28V SWITCH, SLIDE, SPDT, 0.1A, 28V, SMD SPDTONOFFON,Metric2.0mmx2.0mm,SideActuated,GoldRated0.4VAmax.@28V |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | SS3-14MAH4 | Product Category | Slide Switches |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85365019 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Circuit | SPDT | Power - Rated | 0.4@28VAC 28VDC |
| Voltage - Core | :28V | Voltage Rating | 28 V |
| Switch Function | ON - ON - ON | Voltage - Rated AC | 28V |
| Current Rating (Max) | 0.1 A | Current - Max/Contact | :100mA |
| Voltage - Input (Min) | 28 | Switch Function/Rating | ON OFF ON|ON ON ON |
| Contact Rating (Current) | 0.4 VA at 28 VAC/DC | Contact Rating @ Voltage | 0.4 VA at 28 VAC/DC |
| Voltage - Supply (Vcc/Vdd) | :28V | Voltage - DC Spark Over (Nom) | 28V |
Mechanical
| Depth | 7.6 mm | Height | 3.05 mm |
| Weight | 0 | Packaging | Tray |
| Orientation | Right Angle | Contact Form | SP3T |
| Travel Range | 2 mm | Actuator Type | Side Actuated |
| Mounting Type | Right | Terminal Type | Gull Wing |
| Contact Finish | Gold | Mounting Style | SMD/SMT |
| Contact Material | Phosphor Bronze | Length - Overall | 13.8 mm |
| Actuator Material | Polyphenylene Sulfide | Termination Style | Gull Wing |
| Actuator Style/Size | Side Slide | Switch Actuation Level | SPDT|SP3T |
| Contact Layout, Typical | :SPDT | Material - Housing & Prism | Polyphenylene Sulfide/Phosphor Br... |
| 1st Connector Mounting Type | :SMD | ||
Product Info
| Type | Ultra-Miniature SMT Slides | Illumination | Not Illuminated |
| Electrical Life | 10000 | ||
Environmental
| Mechanical Life | 10000 | Operating Temperature | - 25 C to + 85 C |
| Operating Temperature - Junction | 85C | ||
