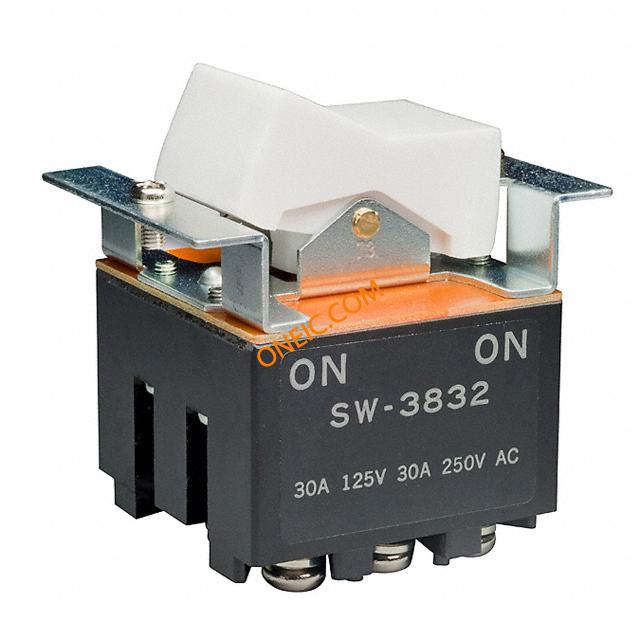

SW3832
| Manufacturer | |
| Description | Switch Rocker ON None ON 3PDT Screw Lug Rocker 30A 250VAC 125VDC 50000Cycles SWITCH ROCKER 3PDT 30A 125V SWITCH, ROCKER, 3PDT, 30A, 250VAC, WHITE Switch,Rocker/Paddle,3PDT,30Amp |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 15 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | ULCSA | Tariff No | 85365080 |
Electrical
| Circuit | 3PDT | Operation | On-None-On |
| Voltage Rating | 125V | Number of Poles | 3 |
| Switch Function | On-On | Current Rating (Max) | 30A (AC/DC) |
| Current - Max/Contact | :30A | Voltage - Input (Min) | 250 |
| Switch Function/Rating | ON None ON | Voltage - Supply (Vcc/Vdd) | :30V |
| Voltage - Rated AC (Phase to Ground/Neutral) | :250V | ||
Mechanical
| Depth | 43 | Height | 57.7 |
| Weight | 0 | Packaging | Bulk |
| Body Finish | Rectangular | Termination | Screws |
| Contact Form | 3PDT | Mounting Type | Panel Mount |
| Terminal Type | Screw Lug | Contact Finish | Silver |
| Mounting Style | Panel | Contact Material | Copper |
| Length - Overall | 56 | Actuator Material | Urea Resin |
| Termination Style | Screw Terminal | Actuator Style/Size | Rocker |
| Number of Positions | 2 | Color - Actuator/Cap | White |
| Mounting Hole Diameter | 23x37mm | Switch Actuation Level | 3PDT |
| Contact Layout, Typical | :3PDT | 1st Connector Mounting Type | :Panel |
Product Info
| Type | Rocker | Electrical Life | 25,000 Cycles |
| Actuator Marking | No Marking | ||
Environmental
| Mechanical Life | 50,000 Cycles | Operating Temperature | -10°C ~ 70°C |
