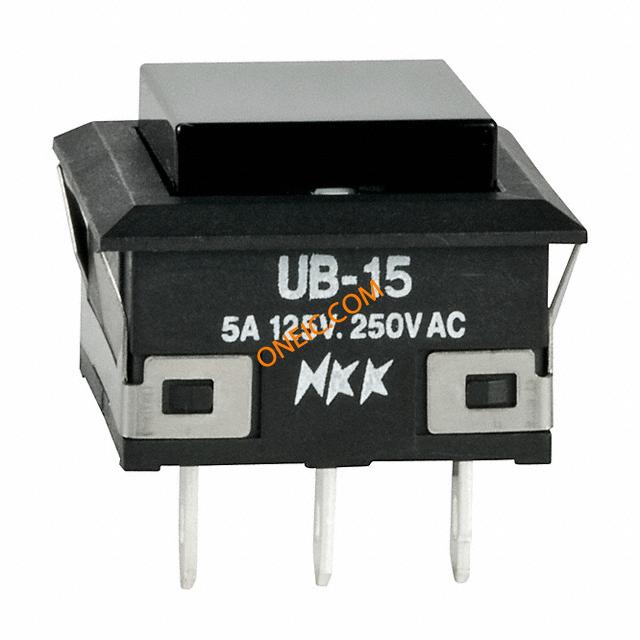

UB15KKW01N-A
| Manufacturer | |
| Description | Pushbutton Switches SPDT ON-(ON) BLACK Switch Push Button ON (ON) SPDT Square Button 5A 250VAC 30VDC Momentary Contact Solder Lug Panel Mount SWITCH PUSHBUTTON SPDT 5A 125V SWITCH, PB, NON-ILLUM, SPDT, 5A, 250VAC SPDTON(ON),Square,SilverRated5A@125/250VAC,SolderLug,Nonilluminated, |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | UB15KKW01N-A-RO | Product Category | Pushbutton Switches |
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85365080 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Circuit | SPDT | Voltage Rating | 125V |
| Switch Function | On-Mom | Current Rating (Max) | 5A (AC/DC) |
| Current - Max/Contact | :5A | Voltage - Input (Min) | 250 |
| Switch Function/Rating | ON (ON) | Connector - Voltage Input | :Solder |
| Voltage - Supply (Vcc/Vdd) | :30V | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Depth | 17.8 | Height | 17.5 |
| Weight | 0 | Packaging | Bulk |
| Contact Form | DPDT | Actuator Type | Square, Button |
| Mounting Type | Panel Mount | Terminal Type | Solder Lug |
| Contact Finish | Silver | Mounting Style | Panel |
| Contact Material | Silver Alloy | Housing Material | Polyamide, Glass Fiber Reinforced |
| Length - Overall | 17.8 | Termination Style | Solder Lug |
| Actuator Style/Size | Square Button | Color - Actuator/Cap | Black |
| Switch Actuation Level | SPDT | Contact Layout, Typical | :SPDT |
| Panel Cutout Dimensions | Square - 16.20mm² | Material - Housing & Prism | (Glass Fiber/Liquid Crystal Polym... |
Product Info
| Type | Standard | Series | UB |
| Features | Epoxy Sealed Terminals | Function | Momentary Contact |
| Electrical Life | 10,000 Cycles | ||
Environmental
| Seal Rating | Epoxy | Mechanical Life | 1,000,000 Cycles |
| Operating Temperature | -20°C ~ 70°C | ||
