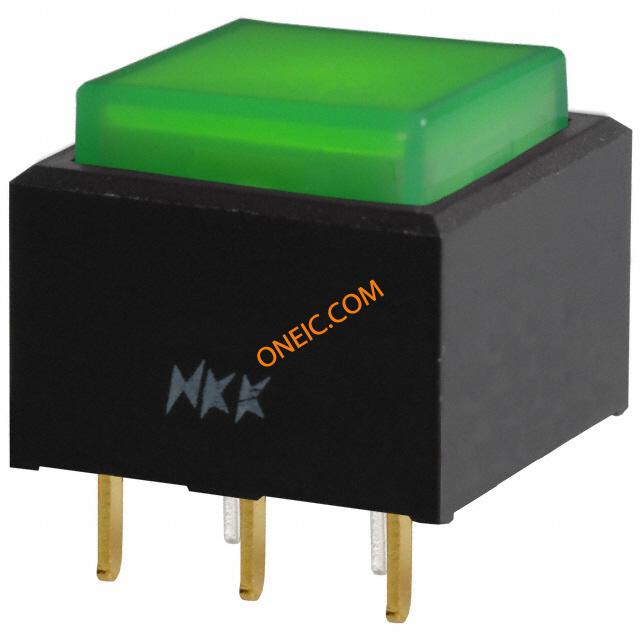

UB15SKG035F-FF
| Manufacturer | |
| Description | SWITCH PUSH SPDT 0.4VA 28V SWITCH, PB, ILLUM, SPDT, 5A, 250V, GRN Switch,pushbutton;SPDTOn(On);0.4A28VAC;Square;GrnLED;Grn/Grncap;PCBMount |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 20 | ||
Compliance
| RoHS | RoHS Compliant Part | Tariff No | 85365011 |
Electrical
| Circuit | SPDT | Voltage Rating | 28V |
| Switch Function | On-Mom | Current Rating (Max) | 0.4VA (AC/DC) |
| Current - Max/Contact | :5A | Switch Function/Rating | :On-(On) |
| Connector - Voltage Input | :PCB, Solder | Voltage - Supply (Vcc/Vdd) | :30V |
| Illumination Voltage (Nominal) | 2.25 VDC | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Weight | 0 | Packaging | Bulk |
| Actuator Type | Square, Button | Mounting Type | Through Hole |
| Termination Style | PC Pin | Actuator Style/Size | :Square |
| Color - Actuator/Cap | Green | Contact Layout, Typical | :SPDT |
| Illumination Type, Color | LED, Green | ||
Product Info
| Type | Standard, Illuminated | Features | Epoxy Sealed Terminals |
| Electrical Life | 200,000 Cycles | ||
Environmental
| Mechanical Life | 1,000,000 Cycles | Operating Temperature | -25°C ~ 50°C |
Documents & Media
PDF Document
