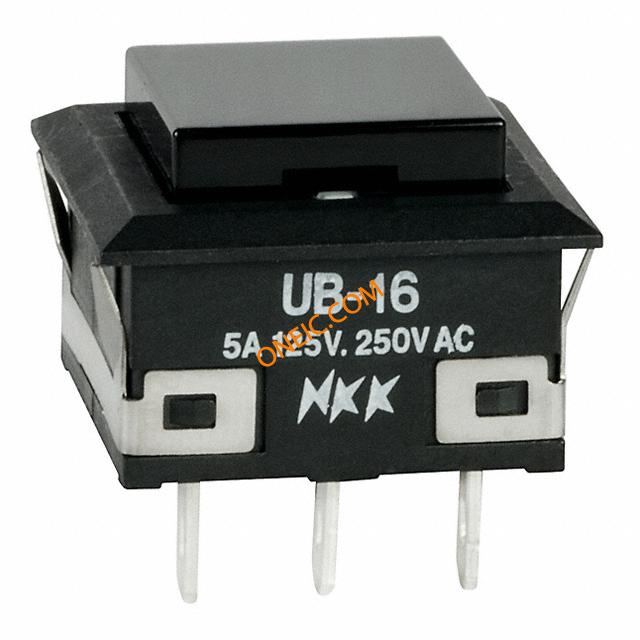

UB16KKW01N-A
| Manufacturer | |
| Description | Pushbutton Switches SPDT ON-ON BLACK SWITCH PUSHBUTTON SPDT 5A 125V SWITCH, PB, NON-ILLUM, SPDT, 5A, 250VAC SWITCH,SPDTONON,SQUARE,SILVERRATED |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Pushbutton Switches | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85365080 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Circuit | SPDT | Voltage Rating | 125V |
| Switch Function | On-On | Current Rating (Max) | 5A (AC/DC) |
| Current - Max/Contact | :5A | Switch Function/Rating | :On-On |
| Connector - Voltage Input | :Solder | Voltage - Supply (Vcc/Vdd) | :30V |
| Voltage - Rated AC (Phase to Ground/Neutral) | :250V | ||
Mechanical
| Weight | 0 | Packaging | Bulk |
| Contact Form | DPDT | Actuator Type | Square, Button |
| Mounting Type | Panel Mount, Snap-In | Contact Finish | Gold |
| Mounting Style | Panel | Housing Material | Polyamide, Glass Fiber Reinforced |
| Termination Style | Solder Lug | Actuator Style/Size | :Square |
| Color - Actuator/Cap | Black | Contact Layout, Typical | :SPDT |
| Panel Cutout Dimensions | Square - 16.20mm² | ||
Product Info
| Type | Standard | Series | UB |
| Features | Epoxy Sealed Terminals | Electrical Life | 10,000 Cycles |
Environmental
| Seal Rating | Epoxy | Mechanical Life | 200,000 Cycles |
| Operating Temperature | -20°C ~ 70°C | ||
