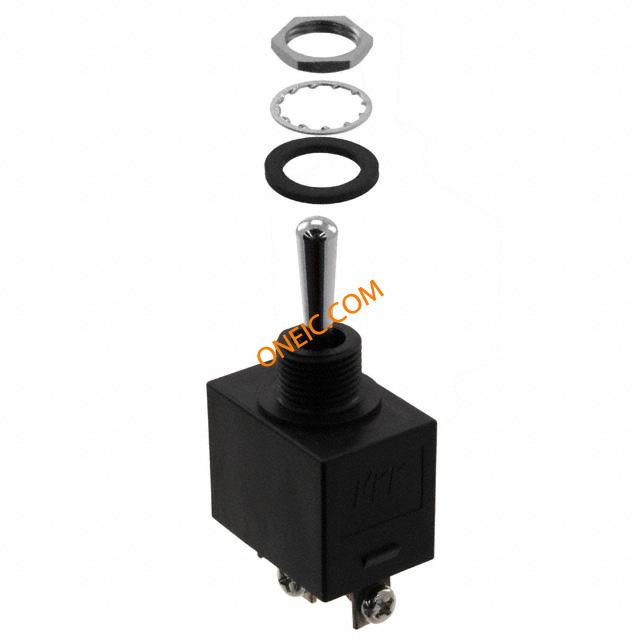

WT13T
| Manufacturer | |
| Description | SWITCH TOGGLE SPDT SEAL SCRW 4PC SWITCH TOGGLE SPDT 10A 125V SWITCH, TOGGLE, SPDT, 10A, 125VAC Switch,Toggle,SPDT,ON-OFF-ON,ScrewLugTermination |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 50 | ||
Compliance
| RoHS | RoHS Compliant Part | Standards | ULCSA |
| Tariff No | 85365080 | ||
Electrical
| Circuit | SPDT | Operation | OnOffOn |
| Voltage Rating | 125V | Number of Poles | 1 |
| Switch Function | On-Off-On | Dielectric Strength | 1500VAC |
| Current Rating (Max) | 10A (AC/DC) | Current - Max/Contact | :10A |
| Switch Function/Rating | :On-Off-On | Connector - Voltage Input | :Screw |
| Voltage - Supply (Vcc/Vdd) | :30V | Voltage - Rated AC (Phase to Ground/Neutral) | :125V |
Mechanical
| Weight | 0 | Packaging | Bulk |
| Termination | Screws | Contact Form | SPDT |
| Actuator Type | Standard Round | Mounting Type | Panel Mount |
| Bushing Thread | M12 x 1 | Mounting Style | Panel |
| Actuator Length | 17.50mm | Actuator Material | Brass, Chrome Plated |
| Termination Style | Screw Terminal | Actuator Style/Size | :Toggle |
| Number of Positions | 3 | Mounting Hole Diameter | 0.492In. |
| Contact Layout, Typical | :SPDT | Panel Cutout Dimensions | Circular - 12.50mm Dia |
Product Info
| Type | Toggle | Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated | Electrical Life | 15,000 Cycles |
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -30°C ~ 70°C |
