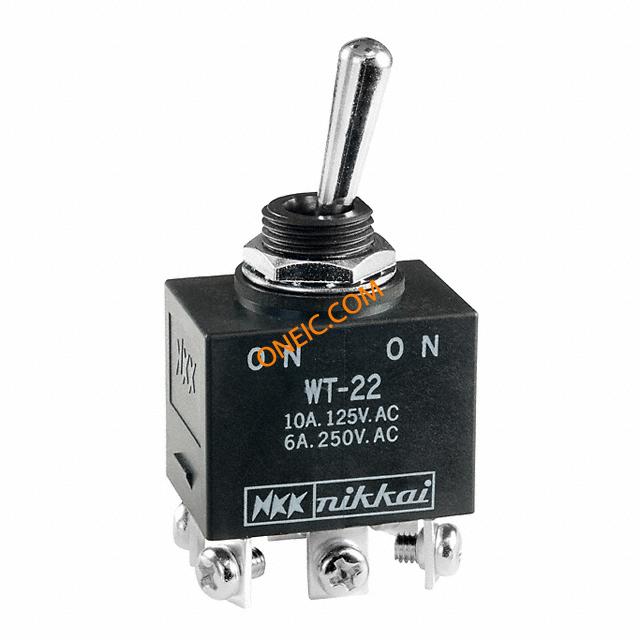

WT22T
| Manufacturer | |
| Description | Toggle Switches ON None ON DPDT Screw Lug Panel Mnt SWITCH TOGGLE DPDT 10A 125V SWITCH, TOGGLE, DPDT, 10A, 125VAC Switch,Toggle,DPDT,ON-NONE-ON,ScrewLugTermination |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Toggle Switches | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant By Exemption | Standards | ULCSA |
| Tariff No | 85365080 | ||
Electrical
| Circuit | DPDT | Operation | OnNoneOn |
| Voltage Rating | 125V | Number of Poles | 2 |
| Switch Function | On-On | Dielectric Strength | 1500VAC |
| Current Rating (Max) | 10A (AC/DC) | Current - Max/Contact | :10A |
| Switch Function/Rating | :On-None-On | Connector - Voltage Input | :Screw |
| Voltage - Supply (Vcc/Vdd) | :30V | Voltage - Rated AC (Phase to Ground/Neutral) | :125V |
Mechanical
| Weight | 0 | Packaging | Bulk |
| Termination | Screws | Contact Form | DPDT |
| Actuator Type | Standard Round | Mounting Type | Panel Mount |
| Bushing Thread | M12 x 1 | Contact Finish | Silver |
| Mounting Style | Panel | Actuator Length | 17.50mm |
| Actuator Material | Brass, Chrome Plated | Termination Style | Screw Terminal |
| Actuator Style/Size | :Toggle | Number of Positions | 2 |
| Bushing, Grommet Type | M12 | Mounting Hole Diameter | 0.492In. |
| Contact Layout, Typical | :DPDT | Panel Cutout Dimensions | Circular - 12.50mm Dia |
Product Info
| Type | Toggle | Series | WT |
| Features | Epoxy Sealed Terminals | Illumination | Non-Illuminated |
| Electrical Life | 15,000 Cycles | ||
Environmental
| Seal Rating | Sealed | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature | -30°C ~ 70°C | ||
