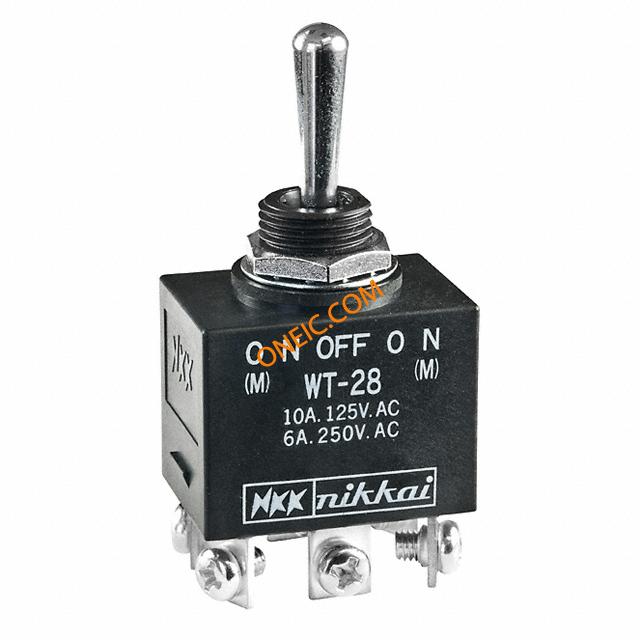

WT28T
| Manufacturer | |
| Description | SWITCH TOGGLE DPDT SEALED 4PCS SWITCH TOGGLE DPDT 10A 125V SWITCH, TOGGLE, DPDT, 10A, 125VAC DPSTDPDT(ON)OFF(ON),ScrewLug |
| Category |
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85365080 |
Electrical
| Circuit | DPDT | Voltage Rating | 125V |
| Switch Function | Mom-Off-Mom | Current Rating (Max) | 10A (AC/DC) |
| Current - Max/Contact | :10A | Switch Function/Rating | :(On)-Off-(On) |
| Connector - Voltage Input | :Screw | Voltage - Supply (Vcc/Vdd) | :30V |
| Voltage - Rated AC (Phase to Ground/Neutral) | :125V | ||
Mechanical
| Weight | 0 | Packaging | Bulk |
| Actuator Type | Standard Round | Mounting Type | Panel Mount |
| Bushing Thread | M12 x 1 | Actuator Length | 17.50mm |
| Actuator Material | Brass, Chrome Plated | Termination Style | Screw Terminal |
| Actuator Style/Size | :Toggle | Contact Layout, Typical | :DPDT |
| Panel Cutout Dimensions | Circular - 12.50mm Dia | ||
Product Info
| Features | Epoxy Sealed Terminals | Illumination | Non-Illuminated |
| Electrical Life | 15,000 Cycles | ||
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -30°C ~ 70°C |
Documents & Media
Similar Parts
AT504M
NKK Switches
Switch Accessories KNURLED FACE NUT Nuts Knurled Round 15.2mm 2.5mm Chrome/Brass M12 X 1.75/M12 X 1.5/M12 X 1.25/M12 X 1 NUT KNURLED FACE METRIC M12 FACE NUT, PUSHBUTTON SWITCH Nut;0.098in.Tx0.598in.Dia.;Knurled

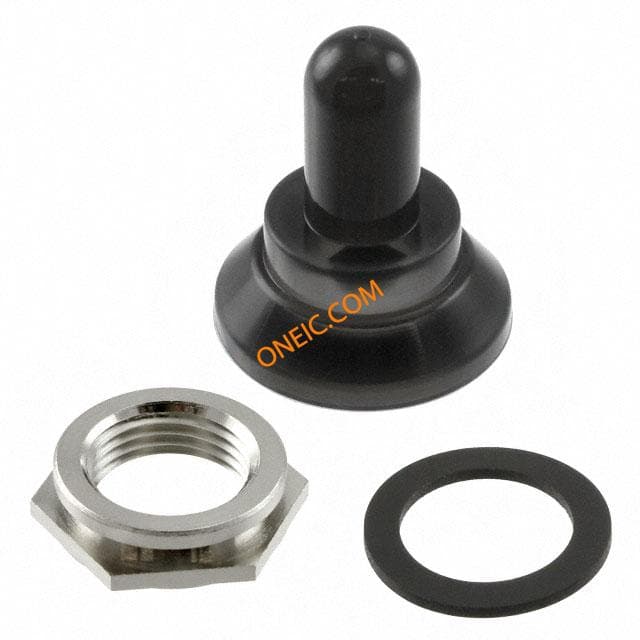

AT4181
NKK Switches
Switch Accessories SPLASHPROOF BOOT Switch Access Toggle Switch Splashproof Boot Assembly TOGGLE BOOT BOOT, M, P, S & WT SERIES TOGGLE SWITCH BOOT,SPLASHPROOFASSEMBLY,BLK

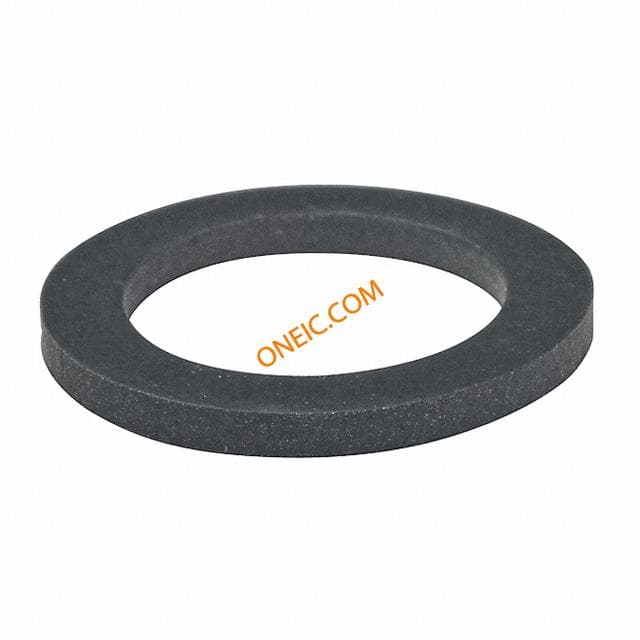

AT401P
