YB15CKG01-12-CB
| Manufacturer | |
| Description | Pushbutton Switches SPDT On-(On) Mom 12V Lamp w/Red Cap SHORT BODY PUSHBUTTON/ILLUMINATE SWITCH PUSHBUTTON SPDT 0.4VA 28V SPDTON(ON),WithoutPanelSeal,Round,BlackOnly,GoldRated0.4VAmax@28V |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Pushbutton Switches | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Circuit | SPDT | Optic Size | T-1 Bi-pin |
| Power - Rated | 0.4 VA | Voltage Rating | 28 V |
| Switch Function | ON - (ON) | Current Rating (Max) | 0.4VA (AC/DC) |
| Illumination Voltage (Nominal) | 12 VAC | ||
Mechanical
| Packaging | Bulk | Contact Form | SPDT |
| Actuator Type | Round | Mounting Type | Panel Mount, Front |
| Contact Finish | Gold | Mounting Style | Panel |
| Housing Material | Polyamide, Glass Fiber Reinforced | Termination Style | Solder Lug |
| Illumination Color | Clear | Color - Actuator/Cap | Red (White Filter/Diffuser) |
| Panel Cutout Dimensions | Circular - 16.00mm Dia | Illumination Type, Color | Incandescent, Red |
Product Info
| Type | Standard, Illuminated | Series | * |
| Features | Epoxy Sealed Terminals | Illumination | LED |
| Electrical Life | 100,000 Cycles | ||
Environmental
| Mechanical Life | 1,000,000 Cycles | Operating Temperature | -25°C ~ 50°C |
Documents & Media
PDF Document
PDF Document
Similar Parts
AT109
NKK Switches
Switch Accessories CAP XTRCTOR KB UB HB CAP EXTRACTOR FOR KB SERIES CAP EXTRACTOR CAP EXTRACTOR FOR MULT SERIES
$10.6454
Details

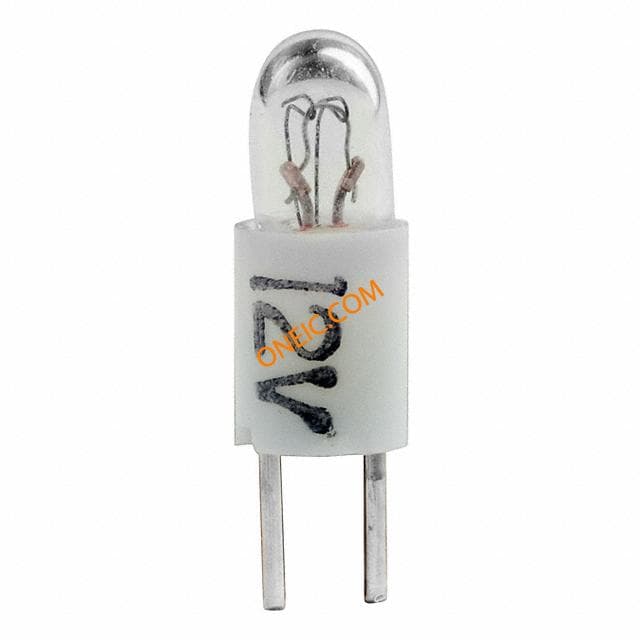

AT611-12V
