YB15CKG01-12-FB
| Manufacturer | |
| Description | Pushbutton Switches SPDT On-(On) Mom 12V Lamp w/Green Cap SWITCH PUSHBUTTON SPDT 0.4VA 28V SPDTON(ON),WithoutPanelSeal,Round,BlackOnly,GoldRated0.4VAmax@28V |
| Category |
Business
| Other Names | 360-2958 | Product Category | Pushbutton Switches |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Circuit | SPDT | Optic Size | T-1 Bi-pin |
| Power - Rated | 0.4 VA | Voltage Rating | 28V |
| Switch Function | On-Mom | Current Rating (Max) | 0.4VA (AC/DC) |
| Illumination Voltage (Nominal) | 12 VAC | ||
Mechanical
| Packaging | Tray | Contact Form | SPDT |
| Actuator Type | Round, Button | Mounting Type | Panel Mount, Front |
| Contact Finish | Gold | Mounting Style | Panel |
| Housing Material | Polyamide, Glass Fiber Reinforced | Termination Style | Solder, Quick Connect - 0.110" (2.8mm) |
| Illumination Color | Clear | Color - Actuator/Cap | Green (White Filter/Diffuser) |
| Panel Cutout Dimensions | Circular - 16.00mm Dia | Illumination Type, Color | Incandescent, Green |
Product Info
| Type | Standard, Illuminated | Series | YB |
| Features | Epoxy Sealed Terminals | Illumination | LED |
| Electrical Life | 100,000 Cycles | ||
Environmental
| Mechanical Life | 1,000,000 Cycles | Operating Temperature | -25°C ~ 50°C |
Documents & Media
Similar Parts
AT109
NKK Switches
Switch Accessories CAP XTRCTOR KB UB HB CAP EXTRACTOR FOR KB SERIES CAP EXTRACTOR CAP EXTRACTOR FOR MULT SERIES

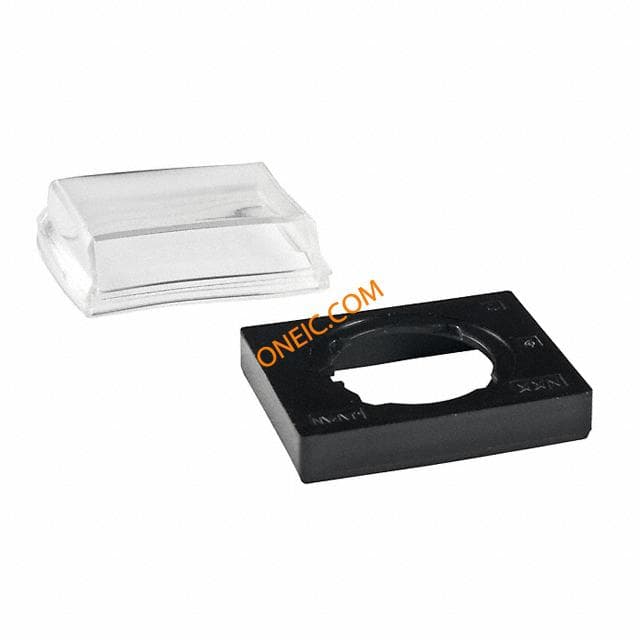

AT4115
NKK Switches
Switch Accessories DUST COVER Switch Access Push Button Switch Dust/Splash Cover COVER DUST POLY FOR YB SERIES Cover; 1.150 in. L x 0.913 in. W x 0.205 in. H DUST COVER, PUSHBUTTON SWITCH Cover;1.150in.Lx0.913in.Wx0.205in.H

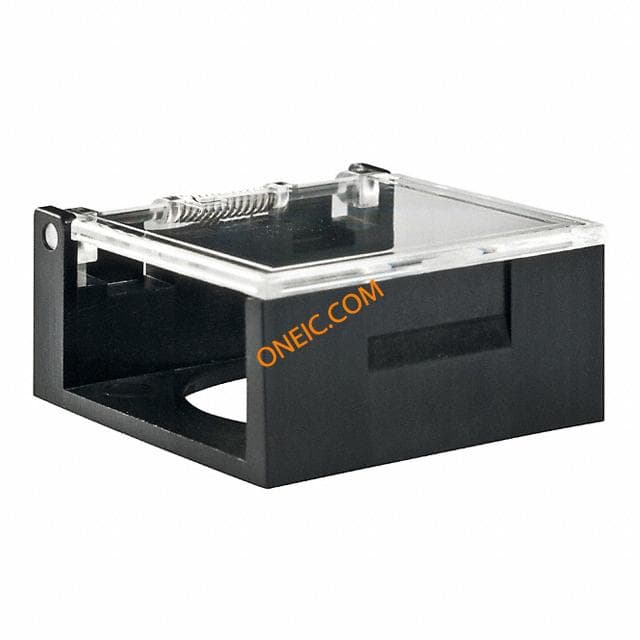

AT4175
