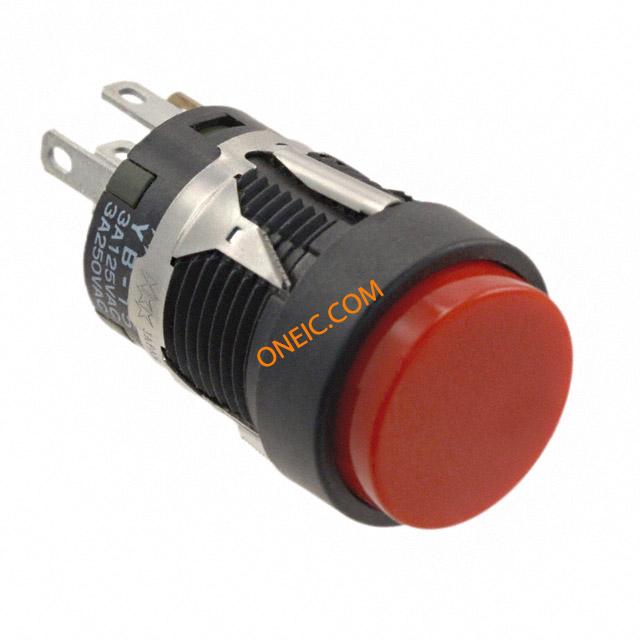

YB15MKW01-CB
| Manufacturer | |
| Description | Pushbutton Switches SPDT ON-(ON) RED RND SILVER Switch Push Button ON (ON) SPDT Round Button 3A 250VAC 30VDC Momentary Contact Quick Connect/Solder Lug Panel Mount SWITCH PUSHBUTTON SPDT 3A 125V Switch,Pushbtn;SPDTON(ON);3A125VAC;Round;Snap-in;Red;SolderLugs |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Circuit | SPDT | Operation | On(On) |
| Voltage Rating | 125V | Switch Function | On-Mom |
| Current Rating (Max) | 3A (AC/DC) | Voltage - Input (Min) | 250 |
| Switch Function/Rating | ON (ON) | ||
Mechanical
| Depth | 18 | Height | 32.6 |
| Packaging | Bulk | Termination | Solder/QCTabs |
| Contact Form | SPDT | Actuator Type | Round, Button |
| Mounting Type | Panel Mount | Terminal Type | Quick Connect/Solder Lug |
| Contact Finish | Silver | Mounting Style | Snap-in |
| Contact Material | Silver Alloy | Length - Overall | 18 |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) | Actuator Style/Size | Round Button |
| Color - Actuator/Cap | Red (White Filter/Diffuser) | Mounting Hole Diameter | 16mm |
| Switch Actuation Level | SPDT | Panel Cutout Dimensions | Circular - 16.00mm Dia |
| Material - Housing & Prism | Diallyl Phthalate Resin/(Glass Fi... | ||
Product Info
| Type | Standard | Features | Epoxy Sealed Terminals |
| Function | Momentary Contact | Electrical Life | 100,000 Cycles |
Environmental
| Mechanical Life | 1,000,000 Cycles | Operating Temperature | -25°C ~ 70°C |
