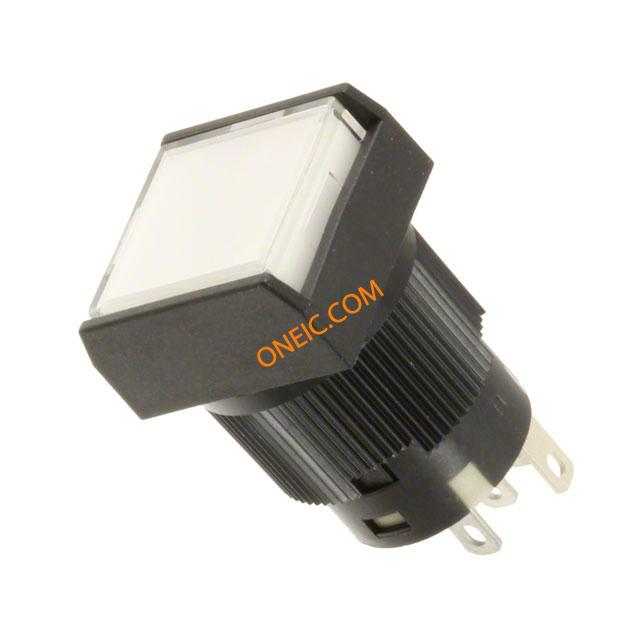

YB15SKG01-6G-JB
| Manufacturer | |
| Description | SHORT BODY PUSHBUTTON/ILLUMINATE Pushbutton Switches SHORT BODY PSHBUTTON ILLMNTD/PANEL MNT SWITCH PUSHBUTTON SPDT 0.4VA 28V SPDTON(ON),WithoutPanelSeal,Square,BlackOnly,GoldRated0.4VAmax@28V |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Circuit | SPDT | Optic Size | T-1 Bi-pin |
| Power - Rated | 0.4 VA | Voltage Rating | 28 V |
| Switch Function | ON - (ON) | Current Rating (Max) | 0.4VA (AC/DC) |
| Illumination Voltage (Nominal) | 3.6 VDC | ||
Mechanical
| Packaging | Bulk | Contact Form | SPDT |
| Actuator Type | Square | Mounting Type | Panel Mount, Front |
| Contact Finish | Gold | Mounting Style | Panel |
| Housing Material | Polyamide, Glass Fiber Reinforced | Termination Style | Solder Lug |
| Illumination Color | Blue | Color - Actuator/Cap | Clear (White Filter/Diffuser) |
| Panel Cutout Dimensions | Circular - 16.00mm Dia | Illumination Type, Color | LED, Blue |
Product Info
| Type | Standard, Illuminated | Series | * |
| Features | Epoxy Sealed Terminals | Illumination | LED |
| Electrical Life | 100,000 Cycles | ||
Environmental
| Mechanical Life | 1,000,000 Cycles | Operating Temperature | -25°C ~ 50°C |
