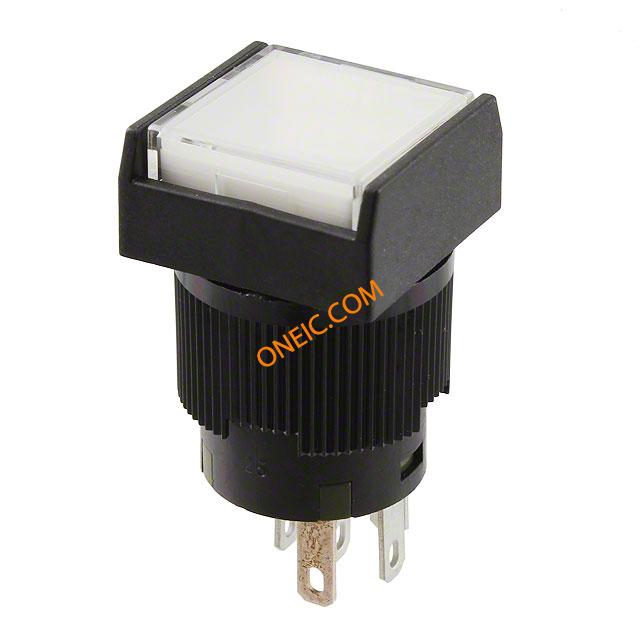

YB15SKW01-2CF24-JB
| Manufacturer | |
| Description | Pushbutton Switches YB SERIES PUSHBUTTON TERM SHORT BODY PUSHBUTTON/ILLUMINATE SWITCH PUSHBUTTON SPDT 3A 125V SPDTON(ON),WithoutPanelSeal,Square,BlackOnly,SilverRated3A@125VAC, |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Circuit | SPDT | Optic Size | T-1 1/2 Bi-pin |
| Voltage Rating | 125 V | Switch Function | ON - (ON) |
| Current Rating (Max) | 3 A | Illumination Voltage (Nominal) | 24 VDC |
Mechanical
| Packaging | Bulk | Contact Form | SPDT |
| Actuator Type | Square | Mounting Type | Panel Mount, Front |
| Contact Finish | Silver | Mounting Style | Panel |
| Housing Material | Polyamide, Glass Fiber Reinforced | Termination Style | Solder Lug |
| Illumination Color | Red, Green | Color - Actuator/Cap | Clear (White Filter/Diffuser) |
| Panel Cutout Dimensions | Circular - 16.00mm Dia | Illumination Type, Color | LED, Red/Green |
Product Info
| Type | Standard, Illuminated | Series | * |
| Features | Epoxy Sealed Terminals | Illumination | LED |
| Electrical Life | 100,000 Cycles | ||
Environmental
| Mechanical Life | 1,000,000 Cycles | Operating Temperature | -25°C ~ 50°C |
