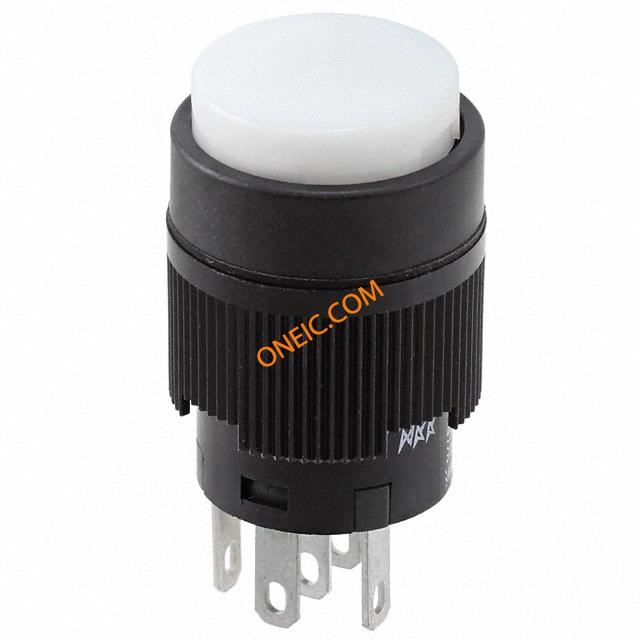

YB15WCKW01-28-BB
| Manufacturer | |
| Description | PUSHBUTTONSPDT MOMROUND PANEL SEALSILVER SOLDER LUG28 VOLTWHITEWHITE SHORT BODY PUSHBUTTON/ILLUMINATE Pushbutton Switches SHORT BODY PSHBUTTON ILLMNTD/PANEL SEAL SWITCH PUSHBUTTON SPDT 3A 125V |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 633-YB15WCKW01-28-BB | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Circuit | SPDT | Optic Size | T-1 Bi-pin |
| Voltage Rating | 125 V | Switch Function | ON - (ON) |
| Current Rating (Max) | 3 A | Illumination Voltage (Nominal) | 28 VAC |
Mechanical
| Packaging | Bulk | Contact Form | SPDT |
| Actuator Type | Round | Mounting Type | Panel Mount, Front |
| Contact Finish | Silver | Mounting Style | Panel |
| Housing Material | Polyamide, Glass Fiber Reinforced | Termination Style | Solder Lug |
| Illumination Color | Clear | Color - Actuator/Cap | White (White Filter/Diffuser) |
| Panel Cutout Dimensions | Circular - 16.00mm Dia | Illumination Type, Color | Incandescent, White |
Product Info
| Type | Standard, Illuminated | Series | * |
| Features | Epoxy Sealed Terminals | Illumination | LED |
| Electrical Life | 100,000 Cycles | ||
Environmental
| Seal Rating | IP 65 | Mechanical Life | 1,000,000 Cycles |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | Operating Temperature | -25°C ~ 50°C |
Documents & Media
PDF Document
PDF Document
Similar Parts

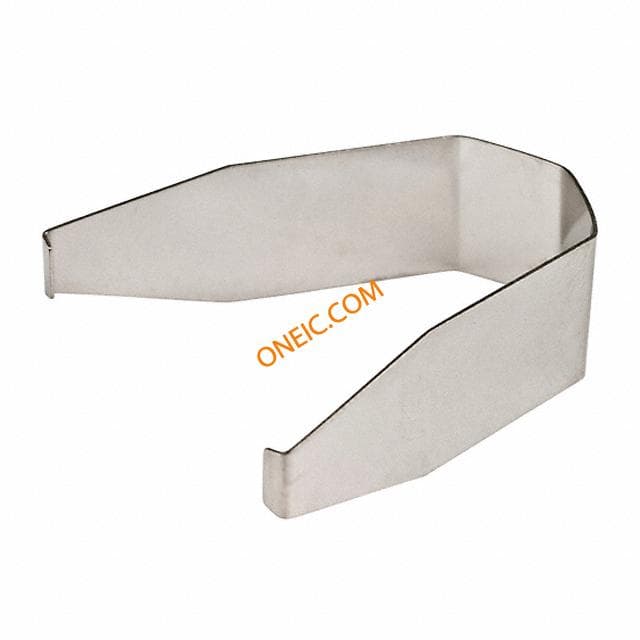

AT109
