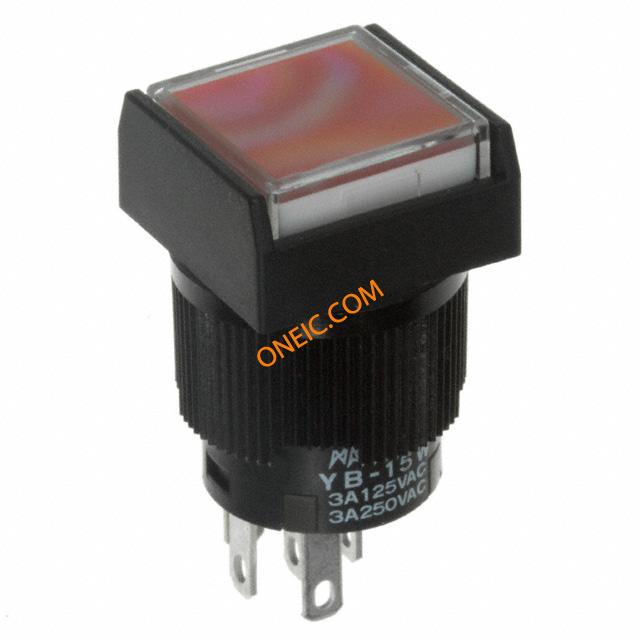

YB15WSKW01-5C-JC
| Manufacturer | |
| Description | Pushbutton Switches SPDT ON(ON) RED SWITCH PUSHBUTTON SPDT 3A 125V SWITCH, PB, ILLUM, SPDT, 3A, 250V, RED SWITCH,ILLUMINATEDPUSHBUTTON,SHORTBODYPANELSEAL,SPDT,REDLED |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Pushbutton Switches | Standard Package | 1 |
Compliance
| RoHS | No | Tariff No | 85365080 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Circuit | SPDT | Operation | On-(On) |
| Optic Size | T-1 Bi-pin | Voltage Rating | 125V |
| Number of Poles | 1 | Switch Function | On-Mom |
| Dielectric Strength | 1500VAC | Current Rating (Max) | 3A (AC/DC) |
| Current - Max/Contact | :3A | Switch Function/Rating | :On-(On) |
| Voltage - Supply (Vcc/Vdd) | :30V | Illumination Voltage (Nominal) | 1.9 VDC |
| Voltage - Rated AC (Phase to Ground/Neutral) | :250V | ||
Mechanical
| Weight | 0 | Packaging | Bulk |
| Body Finish | Short | Termination | Solder/QCTabs |
| Contact Form | SPDT | Actuator Type | Square, Button |
| Mounting Type | Panel Mount, Front | Contact Finish | Silver |
| Mounting Style | Panel | Housing Material | Polyamide, Glass Fiber Reinforced |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) | Illumination Color | Red |
| Actuator Style/Size | :Square | Number of Positions | 2 |
| Color - Actuator/Cap | Clear (Red Filter/Diffuser) | Mounting Hole Diameter | 0.63" |
| Contact Layout, Typical | :SPDT | Panel Cutout Dimensions | Circular - 16.00mm Dia |
| Illumination Type, Color | LED, Red | ||
Product Info
| Type | Standard, Illuminated | Series | YB |
| Features | Epoxy Sealed Terminals | Illumination | LED |
| Electrical Life | 100,000 Cycles | ||
Environmental
| Seal Rating | Epoxy | Mechanical Life | 1,000,000 Cycles |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | Operating Temperature | -25°C ~ 50°C |
