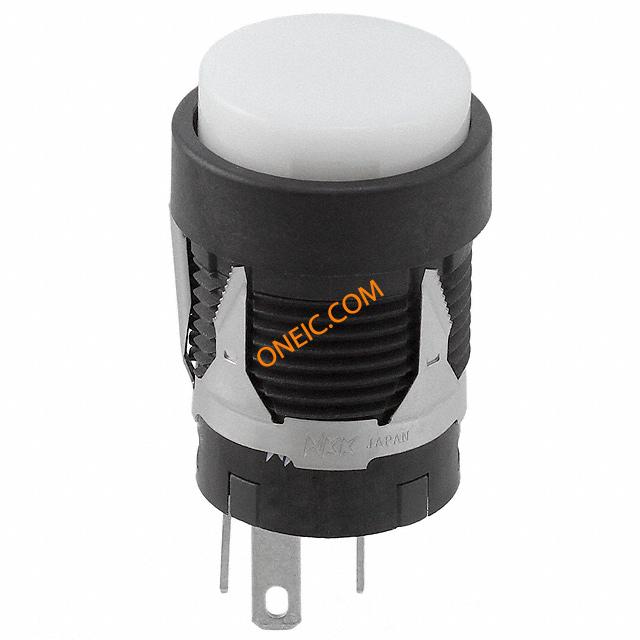

YB16MKW01-12-BB
| Manufacturer | |
| Description | SHORT BODY PUSHBUTTON/ILLUMINATE Pushbutton Switches PUSHBUTTON/SPDT LATCHDOWN SWITCH PUSHBUTTON SPDT 3A 125V SPDTONON,WithoutPanelSeal,Round,BlackOnly,SilverRated3A@125VAC,So |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL94V-0 |
Electrical
| Circuit | SPDT | Voltage Rating | 125 V |
| Switch Function | On-On | Current Rating (Max) | 3 A |
| Capacitance Ratio Condition | Black | Illumination Voltage (Nominal) | 12 VAC |
Mechanical
| Shape | Round | Material | Silver |
| Packaging | Bulk | Contact Form | SPDT |
| Actuator Type | Round, Button | Mounting Type | Panel Mount, Snap-In |
| Termination Style | Quick Connect Terminal | Illumination Color | White |
| Color - Actuator/Cap | White (White Filter/Diffuser) | Panel Cutout Dimensions | Circular - 16.00mm Dia |
| Illumination Type, Color | Incandescent, White | ||
Product Info
| Type | Standard, Illuminated | Series | * |
| Features | Epoxy Sealed Terminals | Illumination | LED |
| Electrical Life | 100,000 Cycles | ||
Environmental
| Mechanical Life | 200,000 Cycles | Operating Temperature | -25°C ~ 50°C |
