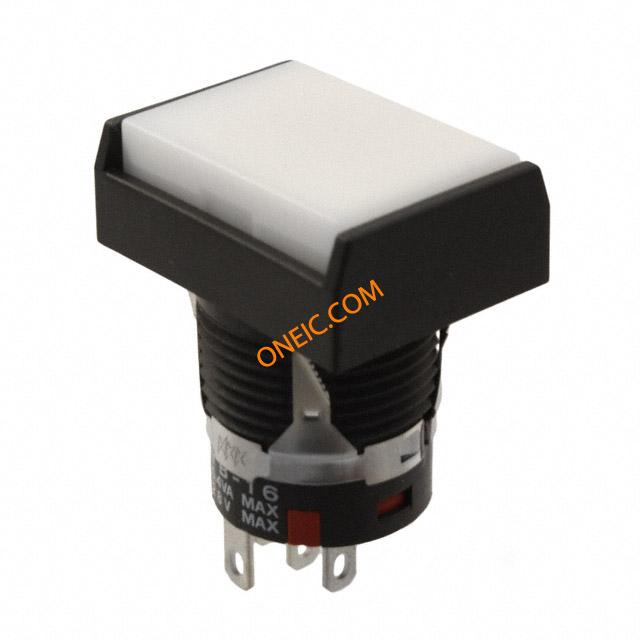

YB16NKG01-BB
| Manufacturer | |
| Description | SWITCH PUSH SPDT 0.4VA 28V SPDTONON,WithoutPanelSeal,Rectangular,Blackonly,GoldRated0.4VAmax@2 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Electrical
| Circuit | SPDT | Voltage Rating | 28V |
| Switch Function | On-On | Voltage - Rated AC | 28V |
| Current Rating (Max) | 0.4VA (AC/DC) | ||
Mechanical
| Packaging | Bulk | Actuator Type | Rectangular, Button |
| Cable Opening | Circular - 16.00mm Dia | Mounting Type | Panel Mount, Snap-In |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) | Color - Actuator/Cap | White |
| Panel Cutout Dimensions | Circular - 16.00mm Dia | ||
Product Info
| Type | Standard | Series | YB |
| Features | Epoxy Sealed Terminals | Circuit Type | SPDT |
| Electrical Life | 100,000 Cycles | Output Configuration | Panel Mount, Snap-In |
Environmental
| Mechanical Life | 200,000 Cycles | Operating Temperature | -25°C ~ 70°C |
