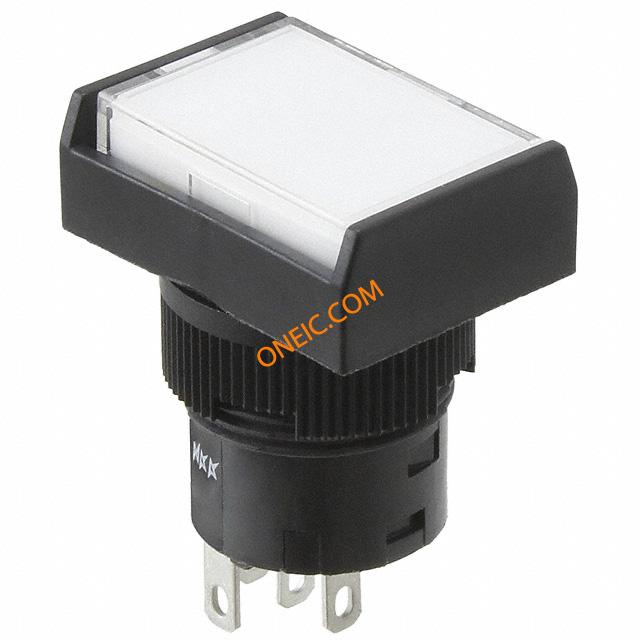

YB16RKW01-6B-JB
| Manufacturer | |
| Description | Pushbutton Switches YB SEREIS PUSHBUTTON SPDT SWITCH PUSHBUTTON SPDT 3A 125V SPDTONON,WithoutPanelSeal,Rectangular,BlackOnly,SilverRated3A@125V |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 360-2959 | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Circuit | SPDT | Voltage Rating | 125V |
| Switch Function | On-On | Voltage - Nominal | 3.6 VDC |
| Voltage - Rated AC | 125V | Current Rating (Max) | 3A (AC/DC) |
| Capacitance Ratio Condition | Clear, White | Illumination Voltage (Nominal) | 3.6 VDC |
Mechanical
| Packaging | Tray | Contact Form | SPDT |
| Actuator Type | Rectangular, Button | Cable Opening | Circular - 16.00mm Dia |
| Mounting Type | Panel Mount, Front | Contact Finish | Silver |
| Mounting Style | Panel | Housing Material | Polyamide, Glass Fiber Reinforced |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) | Illumination Color | White, Super Bright LED |
| Color - Actuator/Cap | Clear (White Filter/Diffuser) | Panel Cutout Dimensions | Circular - 16.00mm Dia |
| Illumination Type, Color | LED, White | ||
Product Info
| Type | Standard, Illuminated | Series | YB |
| Features | Epoxy Sealed Terminals | Circuit Type | SPDT |
| Illumination | LED | Electrical Life | 100,000 Cycles |
| Output Configuration | Panel Mount, Front | ||
Environmental
| Seal Rating | Epoxy | Mechanical Life | 200,000 Cycles |
| Operating Temperature | -25°C ~ 50°C | ||
