YB215CWCKW01-6G-JS
| Manufacturer | |
| Description | Switch Push Button ON (ON) SPDT Flush Round Button 3A 250VAC 30VDC Momentary Contact Quick Connect/Solder Lug Panel Mount SWITCH PUSHBUTTON SPDT 3A 125V Pushbutton Switches STD SIZE PUSHBUTTON ILLMNTD/FLUSH MNT |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 360-2488 | Standard Package | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Circuit | SPDT | Voltage Rating | 125V |
| Switch Function | On-Mom | Current Rating (Max) | 3A (AC/DC) |
| Voltage - Input (Min) | 250 | Switch Function/Rating | ON (ON) |
| Illumination Voltage (Nominal) | 3.6 VDC | ||
Mechanical

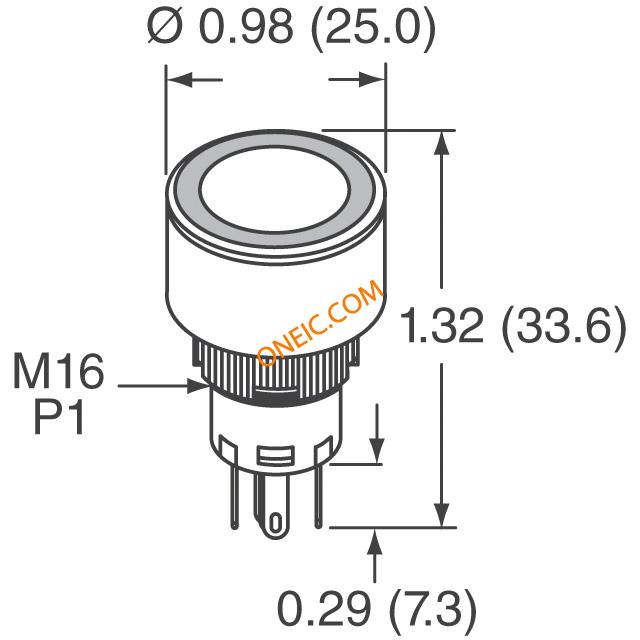

| Depth | 25 | Height | 33.6 |
| Packaging | Bulk | Actuator Type | Round, Button, Flush |
| Mounting Type | Panel Mount | Terminal Type | Quick Connect/Solder Lug |
| Contact Finish | Silver | Contact Material | Phosphor Bronze |
| Length - Overall | 25 | Termination Style | Solder, Quick Connect - 0.110" (2.8mm) |
| Actuator Style/Size | Flush Round Button | Color - Actuator/Cap | Clear (Silver Filter/Diffuser) |

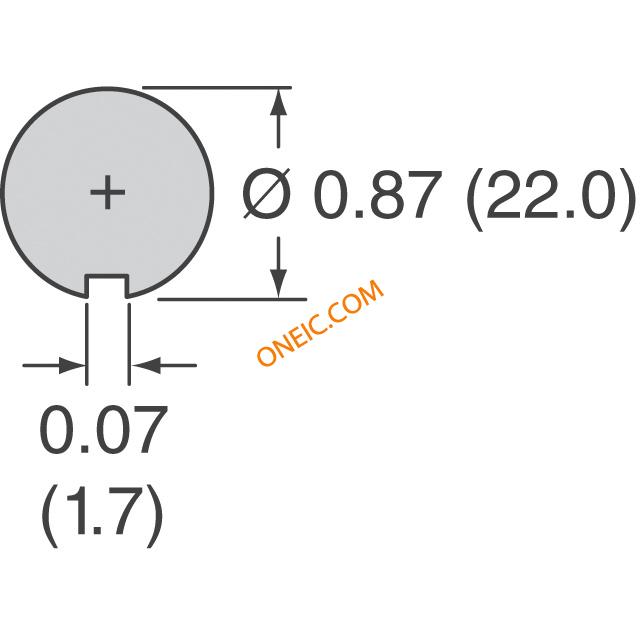

| Switch Actuation Level | SPDT | Panel Cutout Dimensions | Circular - 22.00mm Dia |
| Illumination Type, Color | LED | Material - Housing & Prism | Diallyl Phthalate Resin/(Glass Fi... |
Product Info
| Type | Standard, Illuminated | Features | Epoxy Sealed Terminals |
| Function | Momentary Contact | Electrical Life | 100,000 Cycles |
Environmental
| Mechanical Life | 1,000,000 Cycles | Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Operating Temperature | -25°C ~ 50°C | ||
