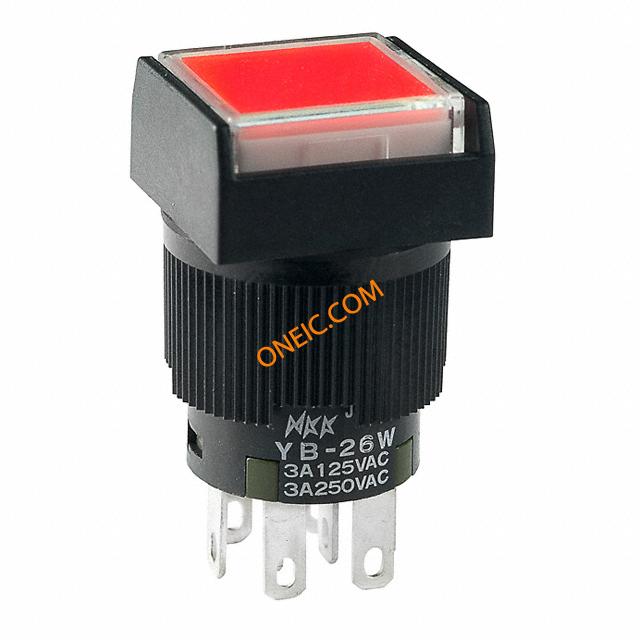

YB26WSKW01-5C-JC
| Manufacturer | |
| Description | Pushbutton Switches DPDT ON-ON RED SWITCH PUSHBUTTON DPDT 3A 125V SWITCH, PB, ILLUM, DPDT, 3A, 250V, RED SWITCH,ILLUMINATED,PUSHBUTTON,SHORTBODYPANELSEAL,DPDT,REDLED |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85365080 |
Electrical
| Circuit | DPDT | Operation | On-On |
| Voltage Rating | 125V | Number of Poles | 2 |
| Switch Function | On-On | Dielectric Strength | 1500VAC |
| Current Rating (Max) | 3A (AC/DC) | Current - Max/Contact | :3A |
| Switch Function/Rating | :On-On | Voltage - Supply (Vcc/Vdd) | :30V |
| Illumination Voltage (Nominal) | 1.9 VDC | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Weight | 0 | Packaging | Bulk |
| Body Finish | Short | Termination | Solder/QCTabs |
| Contact Form | DPDT | Actuator Type | Square, Button |
| Mounting Type | Panel Mount, Front | Mounting Style | Bushing |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) | Illumination Color | :Red |
| Actuator Style/Size | :Square | Number of Positions | 2 |
| Color - Actuator/Cap | Clear (Red Filter/Diffuser) | Mounting Hole Diameter | 0.63" |
| Contact Layout, Typical | :DPDT | Panel Cutout Dimensions | Circular - 16.00mm Dia |
| Illumination Type, Color | LED, Red | ||
Product Info
| Type | Standard, Illuminated | Features | Epoxy Sealed Terminals |
| Electrical Life | 100,000 Cycles | ||
Environmental
| Mechanical Life | 200,000 Cycles | Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Operating Temperature | -25°C ~ 50°C | ||
