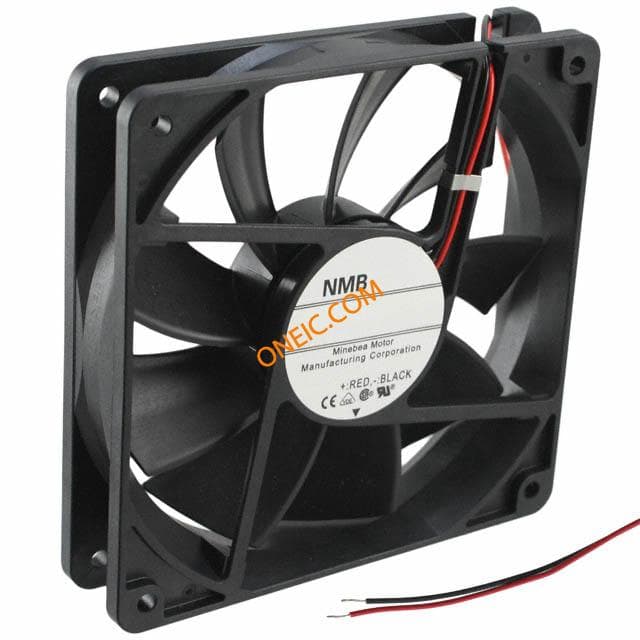

4710KL-04W-B40-E00
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 98 Days | Subcategory | Blowers and Fans |
| Standard Package | 64 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Noise | 38.5 dB | Speed | Clockwise |
| Input Range | 6 to 13.8 | Power - Max | 4.80W |
| Power (Watts) | 4.80W | Power - Rated | 4.8 |
| Voltage Range | 6 ~ 13.8VDC | Voltage Rating | 12VDC |
| Current - Output | 0.4 | Current Rating (Max) | 0.400A |
| Noise Figure (dB Typ @ f) | 38.5 dB | ||
Mechanical
| RPM | 2500 RPM | Size | Square - 119mm L x 119mm H x 25.5mm W |
| Depth | 119 | Height | 25.4 |
| Weight | 0.397 lb (180.08g) | Air Flow | 100.6 CFM (2.85m³/min) |
| Fan Type | Tubeaxial | Termination | Lead Wire |
| Bearing Type | Ball | Mounting Type | Flange Mount |
| Operating Force | 0.164 in H2O (40.9 Pa) | Static Pressure | 0.164 in H2O (40.9 Pa) |
| Housing Material | Plastic | Length - Overall | 119 |
| Material - Blade | Plastic | Material - Frame | Plastic |
| Maximum Pressure | 0.16inH2O | Size / Dimension | Square - 119mm L x 119mm H x 25.5mm W |
Product Info
| Series | 4710KL | ||
Environmental
| Rated Life | 100000 hrs @ 25°C | Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
Documents & Media
Similar Parts
4414FM
ebm-papst
$157.6750
Details

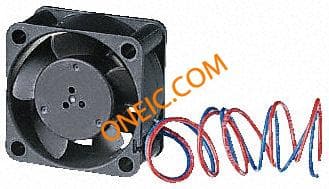

4412F
