FBA06A12H1A
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 365 Days | Subcategory | Blowers and Fans |
| Standard Package | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Noise | 32 dB | Speed | Clockwise |
| Power (Watts) | 1.86W | Power - Rated | 1.86 |
| Voltage Range | 7 ~ 13.8VDC | Voltage Rating | 12VDC |
| Current - Output | 0.155 | Current Rating (Max) | 0.155A |
Mechanical
| RPM | 4200 RPM | Depth | 60 |
| Height | 25.5 | Weight | 0.198 lb (89.81g) |
| Air Flow | 19.1 CFM (0.541m³/min) | Fan Type | Tubeaxial |
| Termination | Lead Wire | Bearing Type | Hydro Wave |
| Mounting Type | Flange Mount | Static Pressure | 0.204 in H2O (51.0 Pa) |
| Housing Material | Polybutylene Terephthalate | Length - Overall | 60 |
| Size / Dimension | Square - 60mm L x 60mm H x 25.5mm W | ||
Environmental
| Rated Life | 50000 hrs @ 40°C | Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
Documents & Media
PDF Document
Similar Parts
175778-3
te connectivity / amp
$0.4420
Details
Q1832865
NMB Technologies Corporation
$8.6476
Details
FL-ZLA631
NMB Technologies Corporation
Details

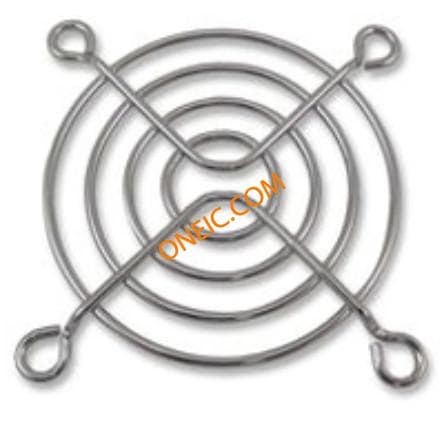

LZ28CP
