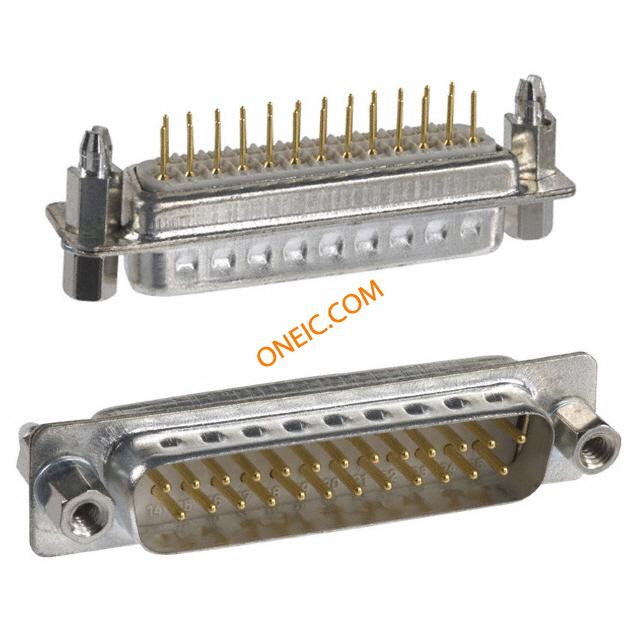

172-025-112R911
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | M-SERIES | Product Category | D-Sub Standard Connectors |
| Standard Package | 25 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 5A | ||
Mechanical
| Color | Beige | Packaging | Tray |
| Insulation | Insulated | Termination | Solder |
| Contact Form | Signal | Contact Type | Signal |
| Mounting Type | Through Hole | Shell Plating | Tin |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Flange Feature | Mating Side; Female Screwlock (4-40) | Mounting Style | Panel |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub | Contact Material | Brass |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester | Termination Style | Solder |
| Number of Contacts | 25 | Insulation Material | Thermoplastic, Glass-Filled |
| Number of Positions | 25 | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | Flash | Shell Size, Connector Layout | 3 (DB, B) |
Product Info
| Gender | Male | Series | 172 |
| Features | Board Lock, Grounding Indents | Main Purpose | Board Lock, Grounding Indents |
| Output Configuration | Through Hole | ||
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
Documents & Media
Sourcing & traceability
- Datasheet
- 172-025-112Rxx1.stp
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
