点击放大查看

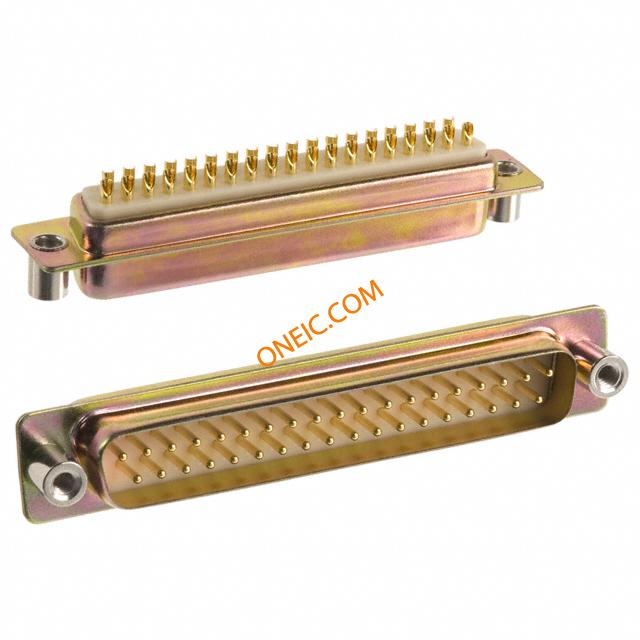

172-E37-101R031
| Manufacturer | |
| Description | CONN DB37 MALE SOLDER CUP CHROME |
| Category |
商业参数
| 其他名称 | 7137MEA | 标准包装数量 | 30 |
电气参数
| 最大额定电流 | 5A | ||
机械参数
| 颜色 | White | 包装方式 | Tray |
| 端接方式 | Solder Cup | 触头类型 | Signal |
| 安装类型 | Free Hanging (In-Line); Panel Mount | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 法兰特征 | Mating Side (4-40) |
| 排数 | 2 | 连接器样式 | D-Sub |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 位数 | 37 |
| 外壳材料及表面处理 | Steel, Yellow Chromate Plated | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 4 (DC, C) | ||
环境参数
| 工作温度 | -50°C ~ 100°C | ||
