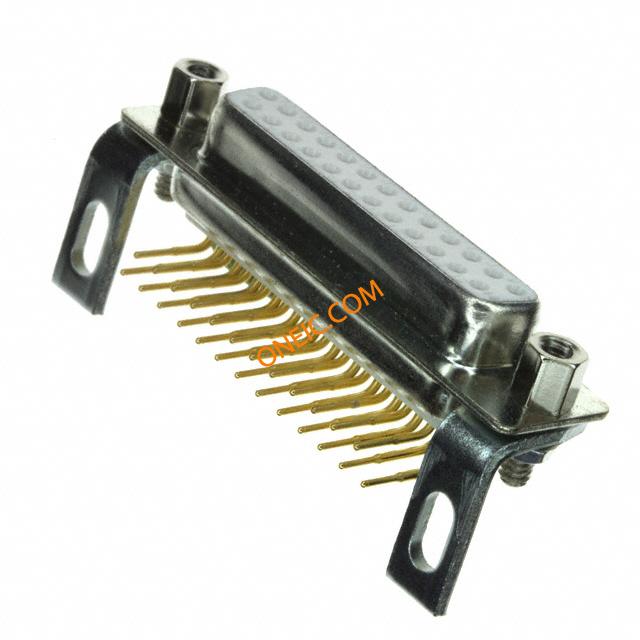

173-E25-212-141
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 20 | ||
Electrical
| Current Rating (Max) | 5A | ||
Mechanical
| Color | White | Termination | Solder |
| Contact Type | Signal | Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Mating Side; Female Screwlock (4-40) | Number of Rows | 2 |
| Connector Style | D-Sub | Housing Material | Polybutylene Terephthalate (PBT) |
| Number of Positions | 25 | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | Flash | Shell Size, Connector Layout | 3 (DB, B) |
Product Info
| Features | Mounting Hardware | ||
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
