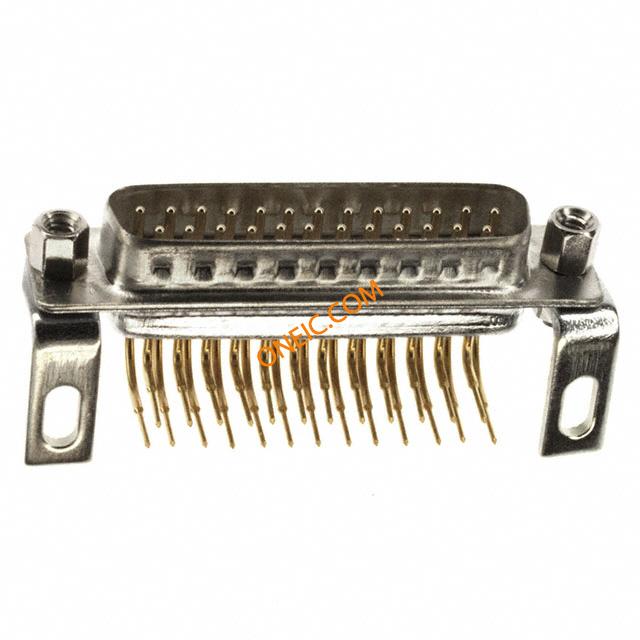

174-025-112R141
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 174-125MA | Standard Package | 20 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 5A | ||
Mechanical
| Color | Beige | Packaging | Tray |
| Insulation | Insulated | Termination | Solder |
| Contact Type | Signal | Mounting Type | Through Hole, Right Angle |
| Shell Plating | Nickel | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Mating Side; Female Screwlock (4-40) |
| Mounting Style | Panel | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Sub |
| Contact Material | Brass | Housing Material | Polybutylene Terephthalate (PBT), Polyester |
| Termination Style | Solder | Number of Contacts | 25 |
| Insulation Material | Thermoplastic, Glass-Filled | Number of Positions | 25 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 3 (DB, B) | ||
Product Info
| Gender | Male | Series | 174 |
| Features | Grounding Indents, Mounting Hardware | ||
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
Documents & Media
Sourcing & traceability
- Datasheet
- 174-025-112Ryy1.stp
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
