点击放大查看

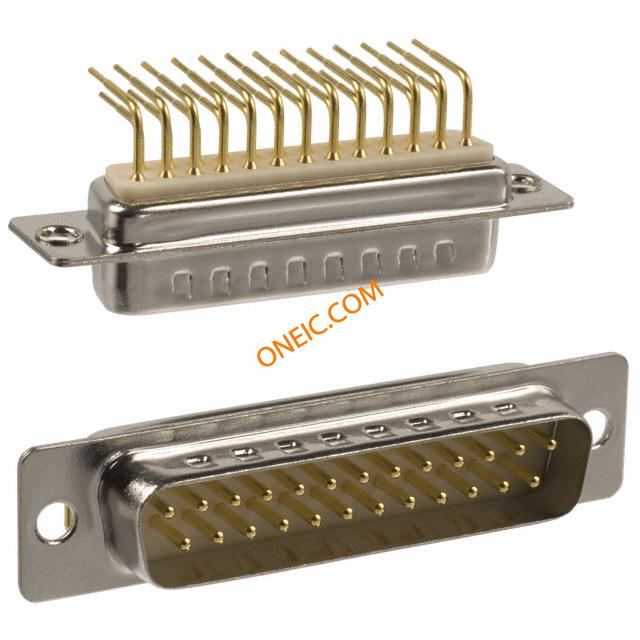

174-E25-113R001
| Manufacturer | |
| Description | CONN DB25 MALE .370" R/A NICKEL D-Sub Standard Connectors 25POS Male 5A Steel |
| Category |
商业参数
| 商标名 | M-SERIES | 标准包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 5A | ||
机械参数
| 颜色 | White | 包装方式 | Tray |
| 绝缘类型 | Insulated | 端接方式 | Solder |
| 触头类型 | Signal | 安装类型 | Through Hole, Right Angle |
| 外壳镀层 | Nickel | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Panel | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 触头材料 | Brass | 壳体材料 | Polyamide (PA6T), Nylon 6T |
| 端接样式 | Solder | 触点数 | 25 |
| 绝缘材料 - 类型 | Thermoplastic, Glass-Filled | 位数 | 25 |
| 外壳材料及表面处理 | Steel, Nickel Plated | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 3 (DB, B) | ||
产品信息
| 连接器性别 | Male | 系列 | 174 |
| 产品特性 | Grounding Indents | ||
环境参数
| 工作温度 | -50°C ~ 100°C | ||
