点击放大查看

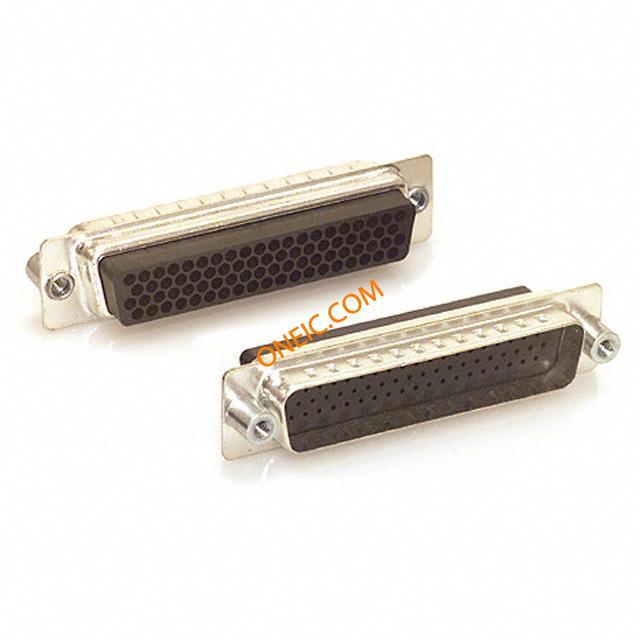

180-078-172-030
| Manufacturer | |
| Description | CONN DB78 MALE HD CRIMP TIN |
| Category |
商业参数
| 其他名称 | 3878M | 标准包装数量 | 40 |
机械参数
| 颜色 | Black | 包装方式 | Bulk |
| 触头类型 | Signal | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug for Male Contacts | 法兰特征 | Mating Side (4-40) |
| 排数 | 4 | 连接器样式 | D-Sub, High Density |
| 位数 | 78 | 外壳材料及表面处理 | Steel, Tin Plated |
| 外壳尺寸，连接器布局 | 5 (DD, D) High Density | ||
产品信息
| 备注 | Contacts Not Provided | 产品特性 | Shielded |
环境参数
| 工作温度 | -50°C ~ 100°C | ||
