点击放大查看

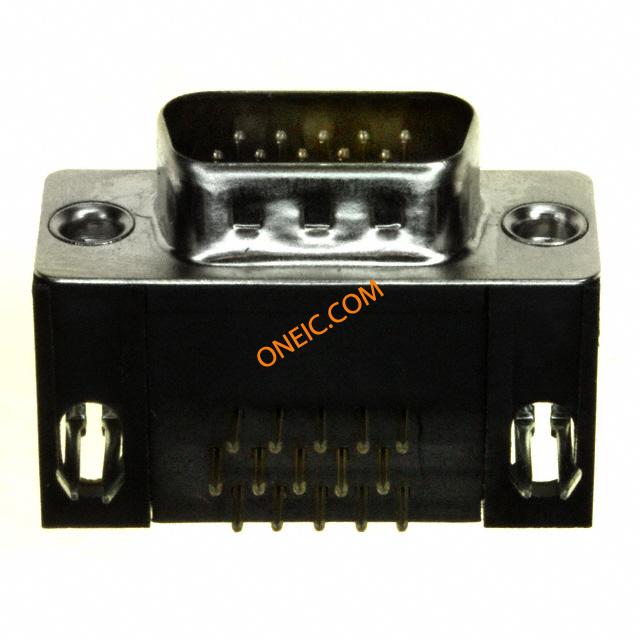

181-015-113R531
| Manufacturer | |
| Description | CONN DB15 MALE HI DENSITY R/A D-Sub High Density Connectors RA 15POS ML SPCC |
| Category |
商业参数
| 产品类别 | D-Sub High Density Connectors | 标准包装数量 | 90 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 500 V | 最大额定电流 | 2A |
机械参数
| 颜色 | Black | 包装方式 | Tray |
| 绝缘类型 | Insulated | 端接方式 | Solder |
| 触头类型 | Signal | 安装类型 | Through Hole, Right Angle |
| 外壳镀层 | Nickel | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (4-40) |
| 排数 | 3 | 外壳材料（壳体） | SPCC |
| 连接器样式 | D-Sub, High Density | 触头材料 | Brass |
| 壳体材料 | Polyamide (PA9T), Nylon 9T | 端接样式 | Through Hole |
| 触点数 | 15 | 绝缘材料 - 类型 | Polyamide |
| 位数 | 15 | 外壳材料及表面处理 | Steel, Nickel Plated |
| 接触镀层厚度 | Flash | 外壳尺寸，连接器布局 | 1 (DE, E) High Density |
产品信息
| 连接器性别 | Male | 系列 | 181 |
| 产品特性 | Board Lock, Grounding Indents, Shielded | ||
环境参数
| 温度范围 | - 50 C to + 100 C | 工作温度 | -50°C ~ 100°C |
