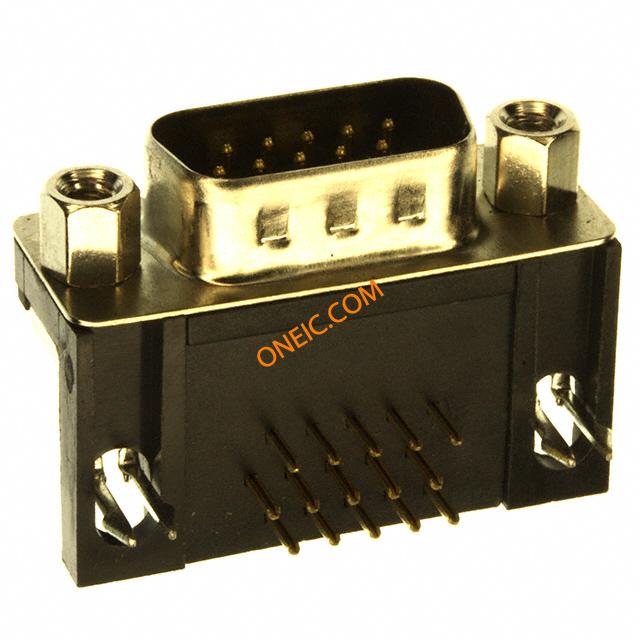

181-015-113R561
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | D-Sub High Density Connectors | Standard Package | 90 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 500 V | Current Rating (Max) | 2A |
Mechanical
| Color | Black | Packaging | Tray |
| Insulation | Insulated | Termination | Solder |
| Contact Form | Signal | Contact Type | Signal |
| Mounting Type | Through Hole, Right Angle | Shell Plating | Nickel |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Flange Feature | Mating Side; Female Screwlock (4-40) | Number of Rows | 3 |
| Shell Material | SPCC | Connector Style | D-Sub, High Density |
| Contact Material | Brass | Housing Material | Polyamide (PA9T), Nylon 9T |
| Termination Style | Through Hole | Number of Contacts | 15 |
| Insulation Material | Polyamide | Number of Positions | 15 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 1 (DE, E) High Density | ||
Product Info
| Gender | Male | Series | 181 |
| Features | Board Lock, Grounding Indents, Shielded | Main Purpose | Board Lock, Grounding Indents, Shielded |
| Output Configuration | Through Hole, Right Angle | ||
Environmental
| Temperature Range | - 50 C to + 100 C | Operating Temperature | -50°C ~ 100°C |
Documents & Media
.jpg&w=3840&q=75)
Sourcing & traceability
- Datasheet
- 181-015-113.stp
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
