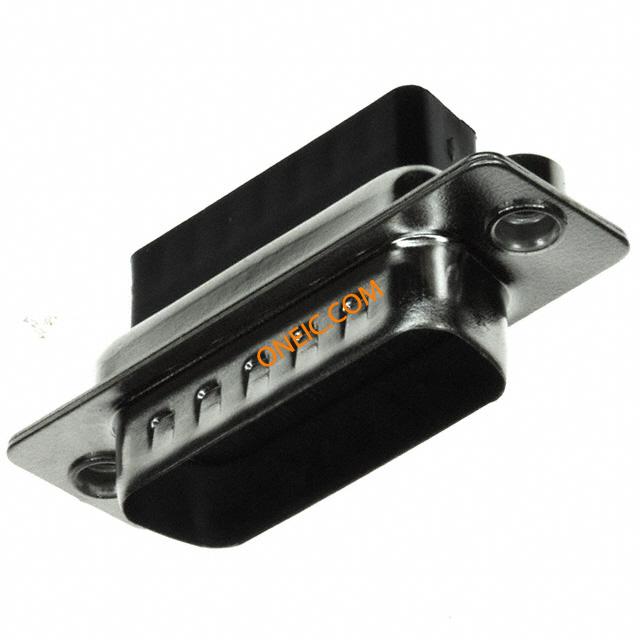

170-015-173L010
| Manufacturer | |
| Description | D-Sub Standard Connectors 15P Male Crimp w/ Clinch Nut 1 CONN DB15 CRIMP MALE NICKEL |
| Category |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | 60 |
| 工厂包装数量 | 60 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 500 VAC | 最大额定电流 | 5 A |
机械参数
| 包装方式 | Tray | 触头类型 | Signal |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Nickel |
| 连接器类型 | Plug for Male Contacts | 法兰特征 | Board Side (4-40) |
| 安装样式 | Wire | 排数 | 2 |
| 连接器样式 | D-Sub | 端接样式 | Crimp |
| 触点数 | 15 | 介电材料 | Polybutylene Terephthalate (PBT), Glass Filled |
| 位数 | 15 | 外壳材料及表面处理 | Steel, Nickel Plated |
| 外壳尺寸，连接器布局 | 2 (DA, A) | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Male |
| 系列 | 170 | 产品特性 | Grounding Indents |
环境参数
| 工作温度 | -50°C ~ 125°C | ||
