点击放大查看

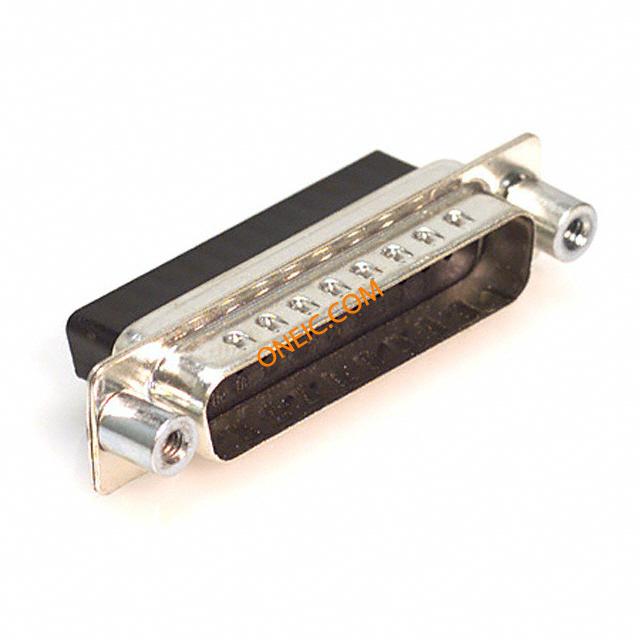

170-025-172L030
| Manufacturer | |
| Description | D-Sub Standard Connectors 25P Male CONN DB25 CRIMP MALE TIN |
| Category |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 颜色 | Black | 包装方式 | Tray |
| 触头类型 | Signal | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug for Male Contacts | 法兰特征 | Mating Side (4-40) |
| 排数 | 2 | 连接器样式 | D-Sub |
| 介电材料 | Polybutylene Terephthalate (PBT) | 位数 | 25 |
| 外壳材料及表面处理 | Steel, Tin Plated | 外壳尺寸，连接器布局 | 3 (DB, B) |
产品信息
| 备注 | Contacts Not Provided | ||
环境参数
| 工作温度 | -50°C ~ 125°C | ||
