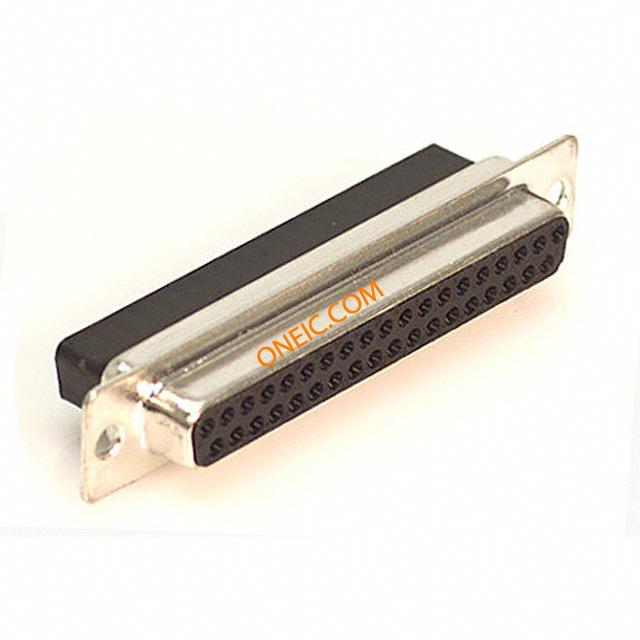

170-037-273L000
| Manufacturer | |
| Description | D-Sub Standard Connectors 37P FEM CRIMP POKE NICKEL SHELL CONN DB37 CRIMP FEMALE NICKEL D-SUB SHELL, DB37, CRIMP, RECPT, 37WAY |
| Category |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | 40 |
| 工厂包装数量 | 40 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 最大额定电流 | 5 A | ||
机械参数
| 颜色 | Black | 重量 | 0.0112 |
| 包装方式 | Bulk | 触头类型 | Signal |
| 安装类型 | Vertical | 外壳镀层 | Tin |
| 连接器类型 | Receptacle for Female Contacts | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | Yellow Chromate |
| 连接器样式 | D-Sub | 本体材料 | :Steel |
| 端接样式 | Crimp | 触点数 | 37 |
| 介电材料 | Polybutylene Terephthalate (PBT) | 位数 | 37 |
| 外壳尺寸-插件 | :DC | 外壳材料及表面处理 | Steel, Nickel Plated |
| 外壳尺寸，连接器布局 | 4 (DC, C) | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | 170 | 适用产品/相关产品 | :170 Series Crimp Socket Contacts |
环境参数
| 工作温度 | -50°C ~ 125°C | ||
