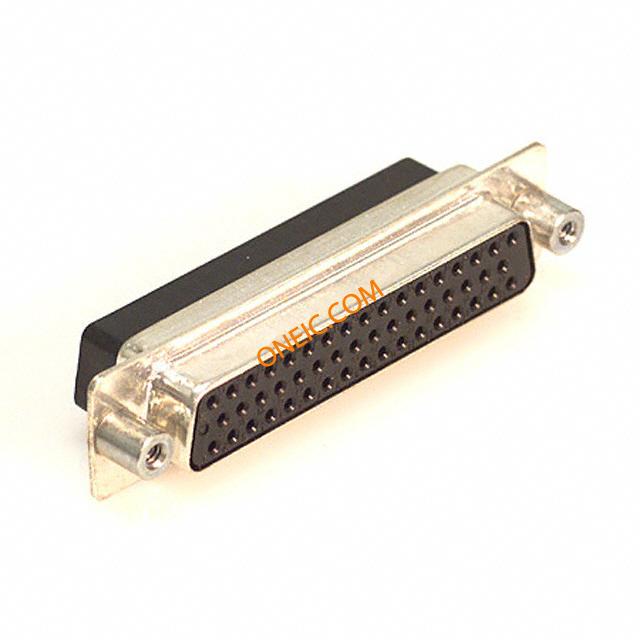

170-050-273L030
| Manufacturer | |
| Description | D-Sub Standard Connectors 50P Female Crimp w/ Clinch Nut 3 CONN DB50 CRIMP FEMALE NICKEL |
| Category |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | 40 |
| 工厂包装数量 | 40 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 500 VAC | 最大额定电流 | 5 A |
机械参数
| 颜色 | Black | 包装方式 | Tray |
| 触头类型 | Signal | 安装类型 | Free Hanging (In-Line) |
| 外壳镀层 | Nickel | 连接器类型 | Receptacle for Female Contacts |
| 法兰特征 | Mating Side (4-40) | 安装样式 | Wire |
| 排数 | 3 | 连接器样式 | D-Sub |
| 端接样式 | Crimp | 触点数 | 50 |
| 介电材料 | Polybutylene Terephthalate (PBT) | 位数 | 50 |
| 外壳材料及表面处理 | Steel, Nickel Plated | 外壳尺寸，连接器布局 | 5 (DD, D) |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | 170 | ||
环境参数
| 工作温度 | -50°C ~ 125°C | ||
