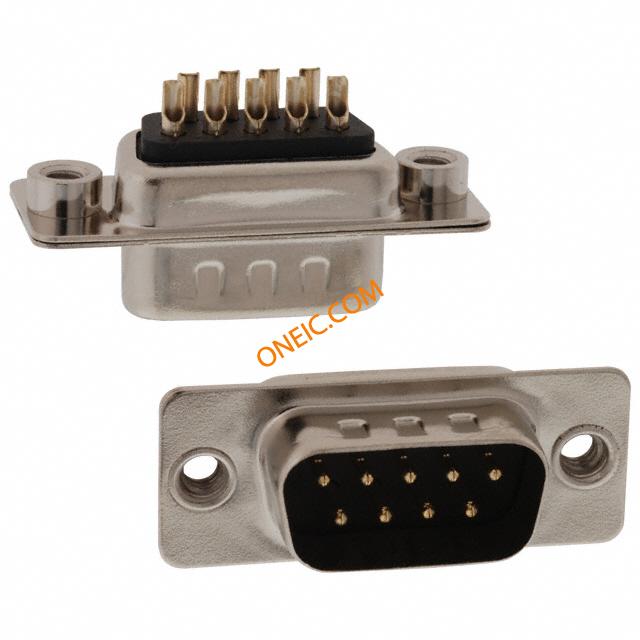

171-009-103L011
| Manufacturer | |
| Description | D-Sub Standard Connectors 9P MALE SOLDER CUP .098 BOARDSIDE NUTS CONN DB9 MALE SOLDER CUP NICKEL |
| Category |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | 80 |
| 工厂包装数量 | 80 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 5 A | ||
机械参数
| 颜色 | Black | 包装方式 | Tray |
| 绝缘类型 | Insulated | 导线线规 | 28-20 |
| 端接方式 | Solder Cup | 触头类型 | Stamped / Formed Contacts |
| 安装类型 | Vertical | 外壳镀层 | Nickel |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 法兰特征 | Board Side (4-40) | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 端接样式 | Solder | 触点数 | 9 |
| 绝缘材料 - 类型 | Polybutylene Terephthalate (PBT) | 位数 | 9 |
| 外壳材料及表面处理 | Steel, Nickel Plated | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
产品信息
| 连接器性别 | Male | 产品特性 | Grounding Indents |
环境参数
| 工作温度 | - 50 C to + 100 C | ||
Documents & Media
相关型号

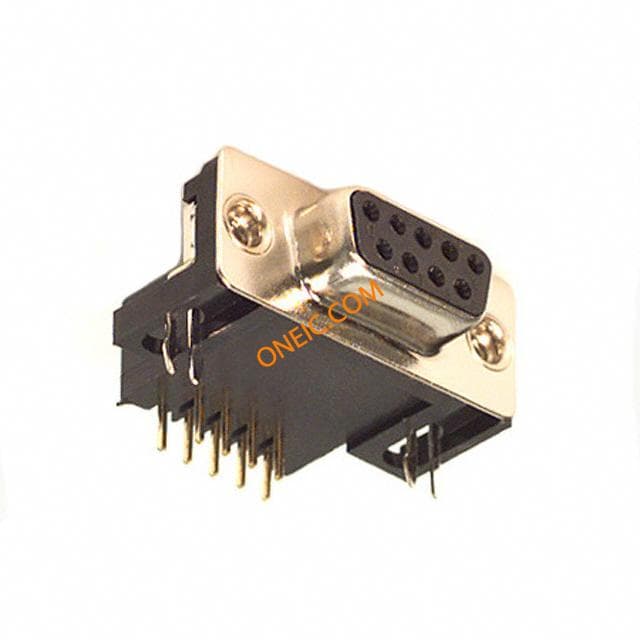

183-009-213R531
NorComp
D-Sub Standard Connectors 9P FEMALE RT ANGLE .590 FOOTPRINT CONN DB9 FEMALE .590" R/A NICKEL
182-009-213R531
NorComp
D-Sub Standard Connectors 9P FEMALE RT ANGLE .318 FOOTPRINT CONN DB9 FEMALE .318" R/A NICKEL D-SUB, RECEPTACLE, SOLDER, R/A, 9WAY
170-009-272L000
NorComp
D-Sub Standard Connectors 9P Female CONN DB9 CRIMP FEMALE TIN
171-009-203L001
NorComp
D-Sub Standard Connectors 9P FEMALE SOLDER CUP CONN DB9 FEMALE SLD CUP NICKEL
182-009-213R171
NorComp
D-Sub Standard Connectors 9P Fem R/A ground straps 4-40 inserts CONN DB9 FEMALE .318" R/A NICKEL D-SUB, RECEPTACLE, SOLDER, R/A, 9WAY
170-009-273L000
NorComp
D-Sub Standard Connectors 9P FEMALE CRIMP POKE NICKEL SHELL CONN DB9 CRIMP FEMALE NICKEL D-SUB SHELL, DB9, CRIMP, RECPT, 9WAY
.jpg&w=3840&q=75)
171-009-202L001
NorComp
D-Sub Standard Connectors 9P Female CONN DB9 FMALE SOLDER CUP TIN
.jpg&w=3840&q=75)
171-009-213R001
NorComp
D-Sub Standard Connectors 9P FEMALE VERTICAL DIP SOLDER CONN DB9 FEMALE DIP SLD NICKEL
182-009-213R161
NorComp
D-Sub Standard Connectors 9P Fem R/A inside ground straps CONN DB9 FEMALE .318" R/A NICKEL

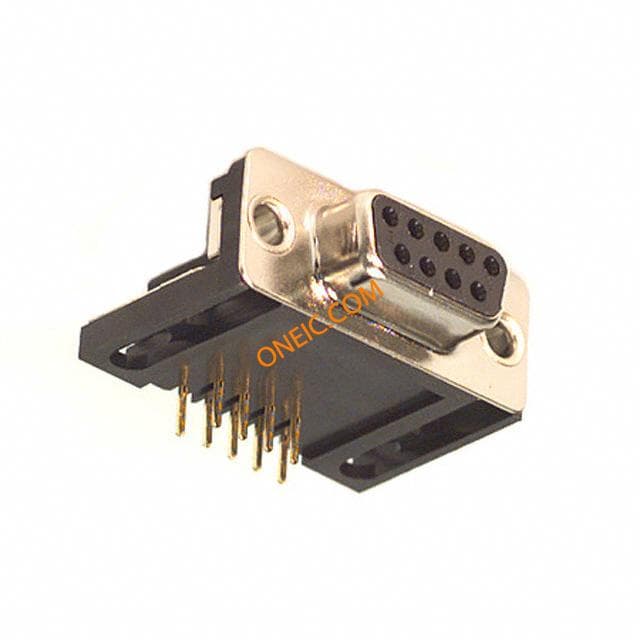

183-009-213R161
NorComp
D-Sub Standard Connectors 9P Fem R/A inside ground straps CONN DB9 FEMALE .590" R/A NICKEL

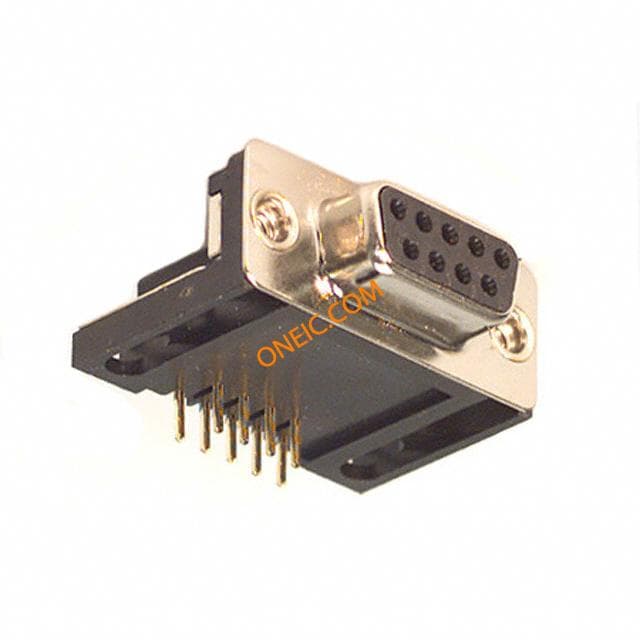

183-009-213R171
NorComp
D-Sub Standard Connectors 9P Fem R/A ground straps 4-40 inserts CONN DB9 FEMALE .590" R/A NICKEL

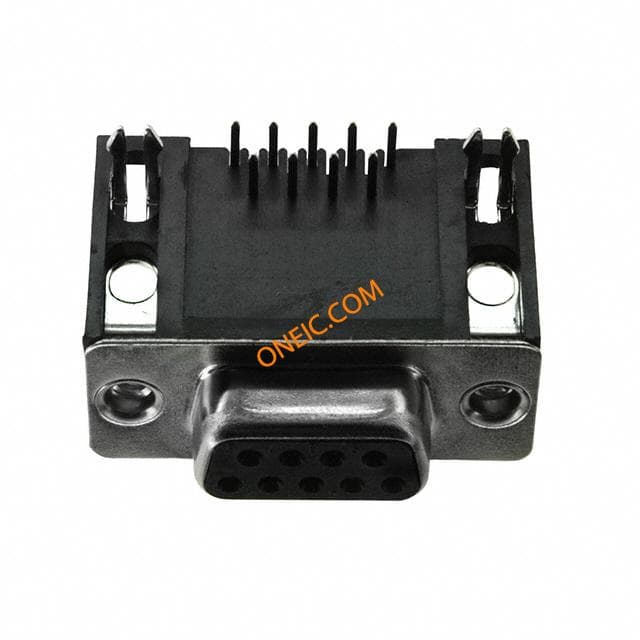

183-009-213R571
