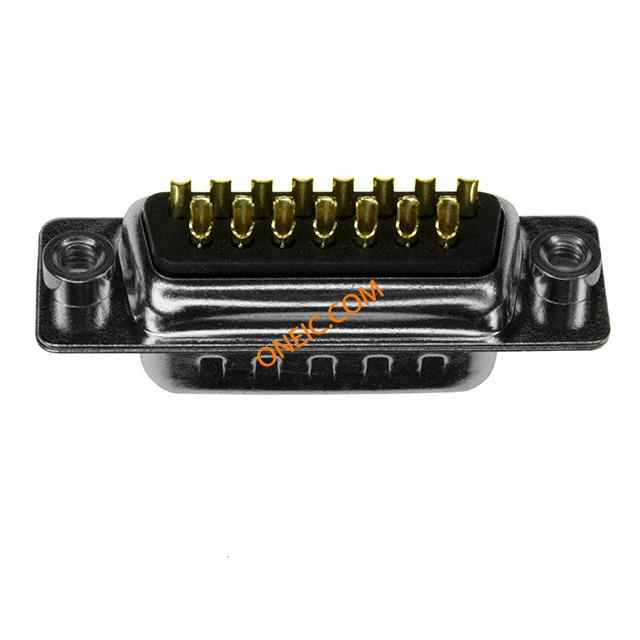

171-015-102L011
| Manufacturer | |
| Description | D-Sub Standard Connectors 15P Male CONN DB15 MALE SOLDER CUP TIN |
| Category |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | 60 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 500 V | 最大额定电流 | 5A |
机械参数
| 颜色 | Black | 包装方式 | Tray |
| 外壳尺寸 | 2 | 导线线规 | 28-20 |
| 端接方式 | Solder Cup | 触头类型 | Signal |
| 安装类型 | Free Hanging (In-Line); Panel Mount | 外壳镀层 | Tin |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 法兰特征 | Board Side (4-40) | 安装样式 | Panel |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 触头材料 | Brass |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 端接样式 | Solder |
| 触点数 | 15 | 绝缘材料 - 类型 | Glass Filled Thermoplastic |
| 位数 | 15 | 外壳材料及表面处理 | Steel, Tin Plated |
| 接触镀层厚度 | Flash | 外壳尺寸，连接器布局 | 2 (DA, A) |
产品信息
| 连接器性别 | Male | ||
环境参数
| 温度范围 | - 50 C to + 100 C | 工作温度 | -50°C ~ 100°C |
Documents & Media
相关型号
.jpg&w=3840&q=75)
171-015-213R001
NorComp
D-Sub Standard Connectors 15P FEMALE VERTICAL DIP SOLDER CONN DB15 FEMALE DIP SLD NICKEL

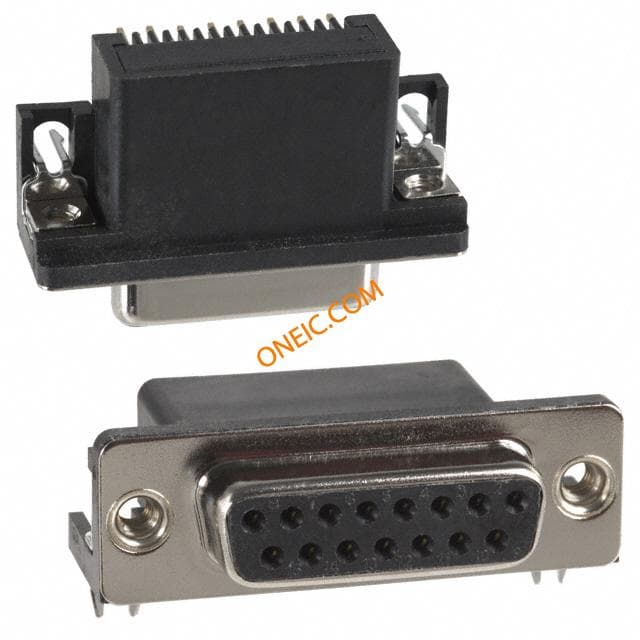

183-015-213R531
NorComp
D-Sub Standard Connectors 15P FEMALE RT ANGLE .590 FOOTPRINT CONN DB15 FEMAL .590" R/A NICKEL
170-015-273L000
NorComp
D-Sub Standard Connectors 15P FEM CRIMP POKE NICKEL SHELL CONN DB15 CRIMP FEMALE NICKEL D-SUB SHELL, DB15, CRIMP, RECPT, 15WAY
182-015-213R531
NorComp
D-Sub Standard Connectors 15P FEMALE RT ANGLE .318 FOOTPRINT CONN DB15 FEMAL .318" R/A NICKEL D-SUB, RECEPTACLE, SOLDER, R/A, 15WAY
.jpg&w=3840&q=75)
171-015-202L001
NorComp
D-Sub Standard Connectors 15P Female CONN DB15 FEMALE SOLDER CUP TIN
170-015-271L000
NorComp
D-Sub Standard Connectors 15P FEMALE CRIMP POKE CHROMATE CONN DB15 CRIMP FEM YLW CHROME

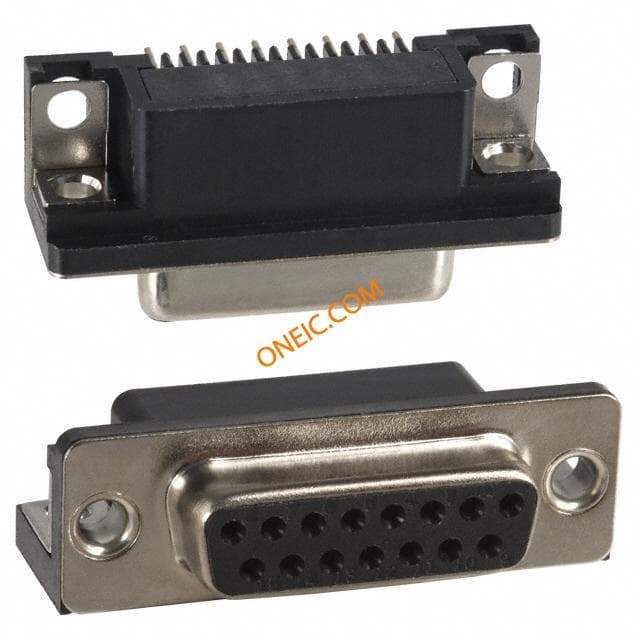

182-015-213R161
NorComp
D-Sub Standard Connectors 15P Female R/A inside ground straps CONN DB15 FEMAL .318" R/A NICKEL
183-015-213R171
NorComp
D-Sub Standard Connectors 15P Fem R/A ground straps 4-40 inserts CONN DB15 FEMAL .590" R/A NICKEL

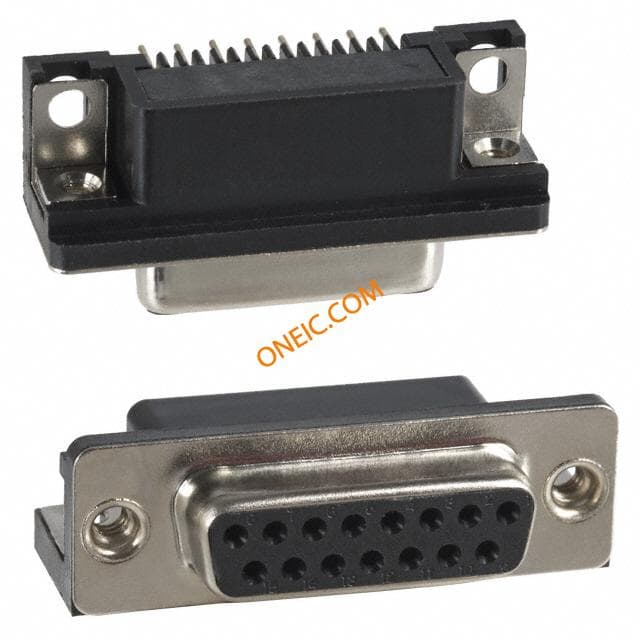

182-015-213R171
NorComp
D-Sub Standard Connectors 15P FML D-SUB R/A CONN DB15 FEMAL .318" R/A NICKEL D-SUB, RECEPTACLE, SOLDER, R/A, 15WAY

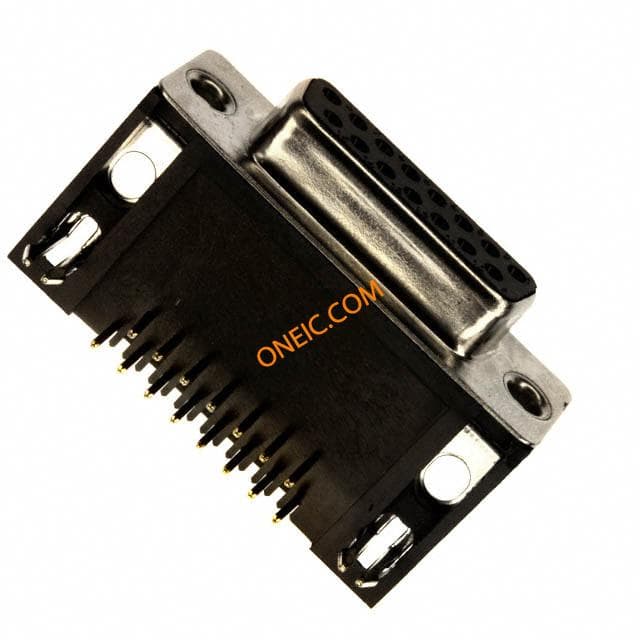

183-015-213R571
