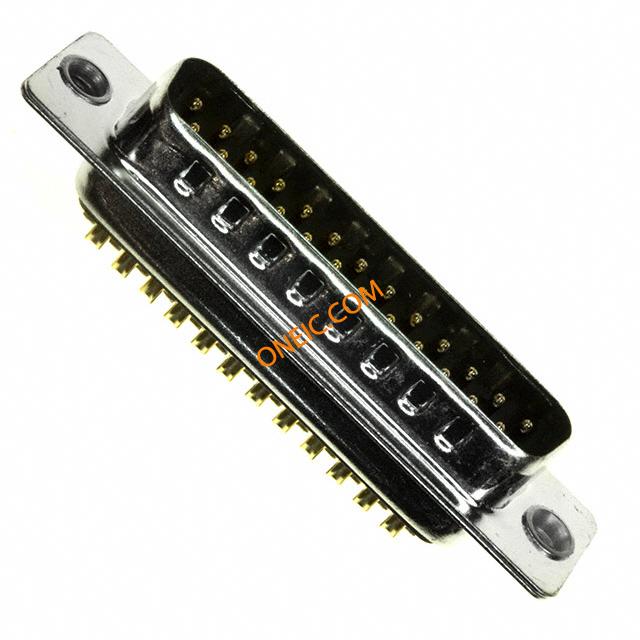

点击放大查看

171-025-102L011

Manufacturer	NorComp Inc.
Description	D-Sub Standard Connectors 25P Male CONN DB25 MALE SOLDER CUP TIN
Category	连接器解决方案D-Sub连接器D-Sub连接器

对参数有疑问？问 AI 助手

商业参数

产品类别

D-Sub Standard Connectors

标准包装数量

合规参数

RoHS

RoHS Compliant

电气参数

最大额定电流

机械参数

颜色	Black	包装方式	Tray
端接方式	Solder Cup	触头类型	Signal
安装类型	Free Hanging (In-Line); Panel Mount	连接器类型	Plug, Male Pins
接触镀层	Gold	法兰特征	Board Side (4-40)
排数	2	连接器样式	D-Sub
壳体材料	Polybutylene Terephthalate (PBT)	位数	25
外壳材料及表面处理	Steel, Tin Plated	接触镀层厚度	Flash
外壳尺寸，连接器布局	3 (DB, B)

环境参数

工作温度

-50°C ~ 100°C
