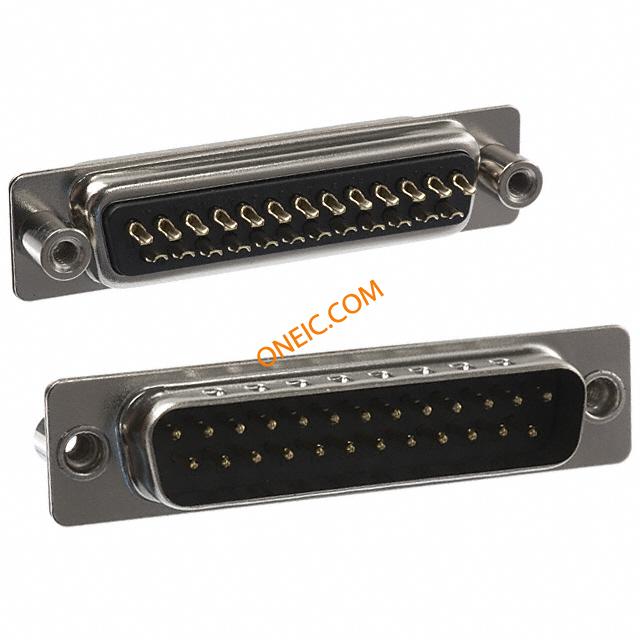

171-025-103L021

Manufacturer	NorComp Inc.
Description	D-Sub Standard Connectors 25P Male Solder Cup w/ Clinch Nut 2 CONN DB25 MALE SOLDER CUP NICKEL
Category	连接器解决方案D-Sub连接器D-Sub连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	D-Sub Standard Connectors	标准包装数量	50
工厂包装数量	50

合规参数

RoHS

RoHS Compliant

电气参数

额定电压

500 VAC

最大额定电流

5 A

机械参数

颜色	Black	包装方式	Tray
端接方式	Solder Cup	触头类型	Signal
安装类型	Free Hanging (In-Line); Panel Mount	外壳镀层	Nickel
连接器类型	Plug, Male Pins	接触镀层	Gold
法兰特征	Board Side (4-40)	安装样式	Wire
排数	2	连接器样式	D-Sub
壳体材料	Polybutylene Terephthalate (PBT)	端接样式	Solder
触点数	25	位数	25
外壳材料及表面处理	Steel, Nickel Plated	接触镀层厚度	Flash
外壳尺寸，连接器布局	3 (DB, B)

产品信息

连接器性别	Male	系列	171
产品特性	Grounding Indents

环境参数

工作温度

-50°C ~ 100°C
