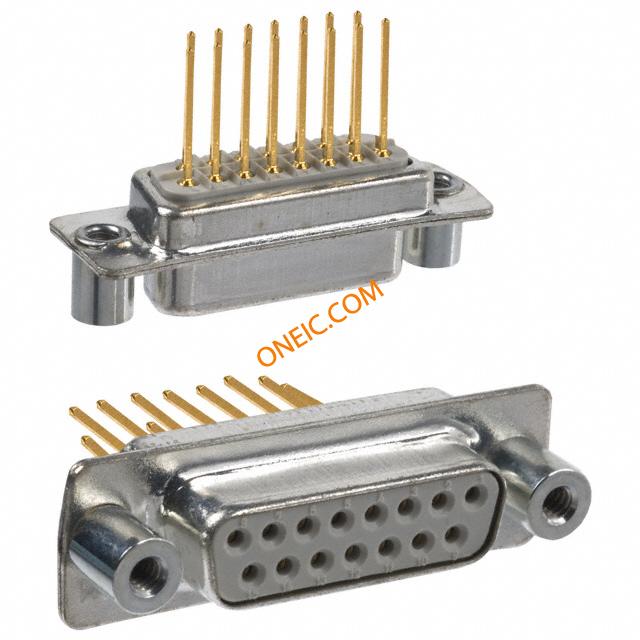

172-015-242R031
| Manufacturer | |
| Description | D-Sub Standard Connectors 15P FEMALE WIRE-WIRE .250 NUTS M/S CONN DB15 FEMALE WIRE WRAP TIN |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | M-SERIES | 其他名称 | 4615FA |
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | 28 |
| 工厂包装数量 | 28 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 5 A | ||
机械参数
| 颜色 | Beige | 包装方式 | Tray |
| 端接方式 | Wire Wrap | 触头类型 | Signal |
| 安装类型 | Through Hole | 外壳镀层 | Tin |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Mating Side (4-40) | 安装样式 | Through Hole |
| 排数 | 2 | 连接器样式 | D-Sub |
| 壳体材料 | Polybutylene Terephthalate (PBT), Polyester | 端接样式 | Solder |
| 触点数 | 15 | 位数 | 15 |
| 外壳材料及表面处理 | Steel, Tin Plated | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 2 (DA, A) | ||
产品信息
| 连接器性别 | Female | ||
环境参数
| 工作温度 | -50°C ~ 100°C | ||
